MCIO 8X Left Exit to MCIO 8X Right Exit Cable (PCIe 5.0) – VTC-AMSEE2310002-K2
The VITALCONN VTC-AMSEE2310002-K2 MCIO 8X left exit to MCIO 8X right exit cable supports PCIe 5.0 at 32 GT/s with 30 AWG conductors and 85 ohm impedance. 0.6mm pitch angled design for server, storage, and HPC. OEM custom lengths available.
| Product Type | MCIO 8X Left Exit to MCIO 8X Right Exit Cable |
|---|---|
| Protocol | PCIe Gen 5 / Gen 6 (32 GT/s per lane) |
| Connector A | 1x MCIO 8X (SFF-TA-1016 style, left exit) |
| Connector B | 1x MCIO 8X (right exit) |
| Pitch | 0.6 mm |
| Conductor | 30 AWG |
| Differential Impedance | 85 ohm (85+/-10% @25ps RT) |
| Durability | At least 250 mating cycles |
| Cable Length | Standard lengths from stock (OEM custom) |
| Applications | Data centers, servers, storage, HPC, switches, base stations |
| Compliance | RoHS 2.0, China RoHS, REACH SVHC |

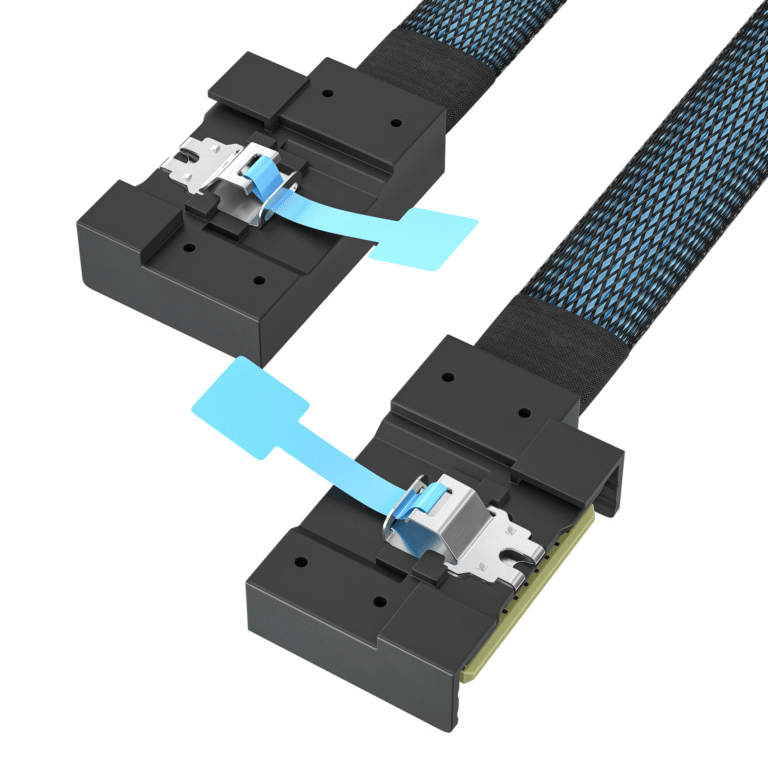

The MCIO 8X left exit to MCIO 8X right exit cable VTC-AMSEE2310002-K2 from VITALCONN is a Gen 5 high-speed data cable that joins two MCIO 8-lane headers, both built to the SFF-TA-1016 style interface, with one end exiting left and the other exiting right. This angled routing lets the cable manage tight corners inside servers and switches, where straight cables would interfere with heatsinks, drive cages, or adjacent connectors. The MCIO 8X left exit to MCIO 8X right exit cable supports up to PCIe 5.0 at 32 GT/s per lane, making it a practical choice for space-constrained next-generation platforms.
The MCIO 8X left exit to MCIO 8X right exit cable uses a compact 0.6 mm pitch connector design that saves space in terminal equipment, and the 1.57 mm PCB card thickness is compatible with PCIe riser cards. Signal integrity is managed with 85 ohm impedance control across the 30 AWG cable, and the assembly meets SAS 4.0 and PCIe 4.0 signal-integrity criteria for SCD21, FEXT, NEXT, and insertion loss. Mechanical reliability is engineered for at least 250 mating cycles, with stable mating and unmating forces, so the cable holds up through repeated service in dense racks.
Standard lengths are available from stock, with OEM/ODM custom lengths produced to order. Reference the SFF committee specifications for MCIO mechanical requirements, and explore the complete High Speed Cable range for every high-speed interconnect in your platform.
MCIO 8X Left Exit to MCIO 8X Right Exit Cable Specifications
- Part Number: VTC-AMSEE2310002-K2
- Supplier PN: AMSEE2310002
- Product Type: MCIO 8X Left Exit to MCIO 8X Right Exit Cable
- Connectors: 1x MCIO 8X (SFF-TA-1016 style, left exit) + 1x MCIO 8X (right exit)
- Pitch: 0.6 mm compact connector design
- PCB Card Thickness: 1.57 mm, compatible with PCIe riser cards
- Protocol: PCIe Gen 5 and PCIe Gen 6; up to 32 GT/s signal rate
- Conductor: 30 AWG cable
- Differential Impedance: 85 ohm
- Mating Force: Max 55.5N; unmating force max 49N
- Durability: At least 250 mating cycles
- Electrical: 30VAC per contact, 0.5A per contact, contact resistance 20mohm initial
- Insulation: Withstand voltage min 300VDC/100ms; insulation resistance min 10Mohm adjacent pins
- Signal Integrity: 85+/-10% ohm @25ps RT; SCD21/FEXT/NEXT/IL meet SAS 4.0 and PCIe 4.0
- Compliance: RoHS 2.0, China RoHS, REACH SVHC
Key Features of the MCIO 8X Left Exit to Right Exit Cable
- Left-exit and right-exit connector orientation routes cables around obstacles in tight chassis.
- Compact 0.6 mm pitch connector design saves space in terminal equipment.
- 1.57 mm PCB card thickness compatible with PCIe riser cards.
- Supports 85 ohm impedance applications with controlled tolerances.
- Supports signal transfer rates up to PCIe 5.0 at 32 GT/s.
- 30 AWG cable construction balances flexibility with signal integrity.
- Meets SAS 4.0 and PCIe 4.0 criteria for SCD21, FEXT, NEXT, and insertion loss.
- Rated for at least 250 mating cycles with controlled mating and unmating forces.
Packing Details
- Packaging: Anti-static ESD bag with moisture barrier, individually labeled
- Carton: Export-grade corrugated carton with product and brand markings
- Accessories: Label and RoHS compliance tag included
- Delivery: Standard shipping from our Shunde and Dongguan facilities; global freight available
MCIO 8X Left Exit to Right Exit Cable Applications
- Data centers and network equipment with dense, obstacle-rich cabling routes.
- Servers and storage devices using MCIO-based NVMe and accelerator topologies.
- High-performance computing (HPC) clusters requiring PCIe 5.0 reach in tight spaces.
- Switches and routers where angled routing improves airflow and serviceability.
- Wireless base stations and radio equipment needing reliable high-speed interconnect.
MCIO 8X Left Exit to Right Exit Cable FAQ
Q1: What is the benefit of left-exit and right-exit orientations?
The angled exits let the cable turn immediately after the connector, so it can route around heatsinks, drive cages, and adjacent connectors in dense server and switch chassis where straight cables do not fit.
Q2: What data rate does this MCIO 8X left exit to MCIO 8X right exit cable support?
The cable supports signal rates up to PCIe 5.0 at 32 GT/s per lane and is specified for PCIe Gen 5 and PCIe Gen 6 platforms, providing headroom for next-generation servers.
Q3: What signal integrity does the cable provide?
The mated connector impedance is 85+/-10% ohm at 25ps rise time, and SCD21, FEXT, NEXT, and insertion loss all meet SAS 4.0 and PCIe 4.0 criteria for reliable high-speed operation.
Q4: What is the durability of the cable?
The assembly is rated for at least 250 mating cycles with maximum mating force of 55.5N and maximum unmating force of 49N, supporting repeated service in dense racks.
