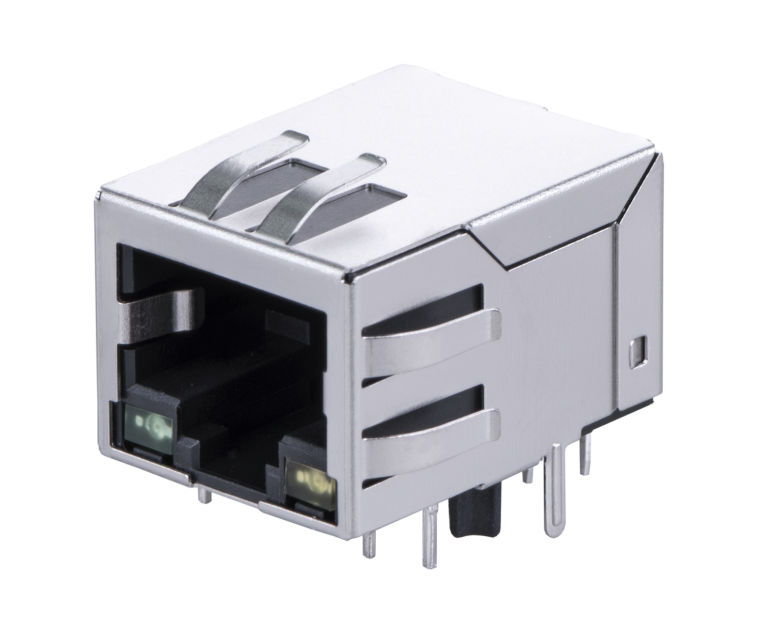

ICM RJ45 Integrated common mode filters, tab down, With LEDs, through hole PN#J11GH2113D4A1
VITALCONN ICM RJ45 Part Number: J11GH2113D4A1 is a 1*1 port Magnetic Modular Jack, integrated common mode filters, with LEDs, 6u” gold plated, through hole mounting, tab down.
| Application LAN | Non-PoE |
|---|---|
| Latch | Tab Down |
| LED | With LED |
| Mounting Type | |
| Number of Ports | 1*1 |
| Orientation | 90° Right Angle |
| Shielding | Shielded |
| Speed | 10 Base-T, 100 Base-T |
SPECIFICATIONS:
1.MATERIALS AND FINISH
- HOUSING:THERMOPLASTIC PA46 FLAMMABILITY RATING UL94V-0. (COLOR:PANTONE BLACK)
- CONTACT:PHOSPHOR BRONZE T=0.35MM FLAT PIN PLATING:6u”GOLD PLATING OVER NICKEL
- SHIELD: 0.20MM THICKNESS COPPER ALLOY WITH NICKEL PLATED TAILS: NICKEL PLATING COVERED BY 100U” TIN PLATING.
2.MECHANICAL CHARACTERISTICS
- DURABILITY: 750(MODULAR JACK) INSERTION/PLUG DIMENSION CYCLES
3.ENVIRONMENTAL
- OPERATING TEMPERATURE: -40℃ TO +85 ℃
- STORAGE TEMPERATURE: -40 ℃ TO +85℃
