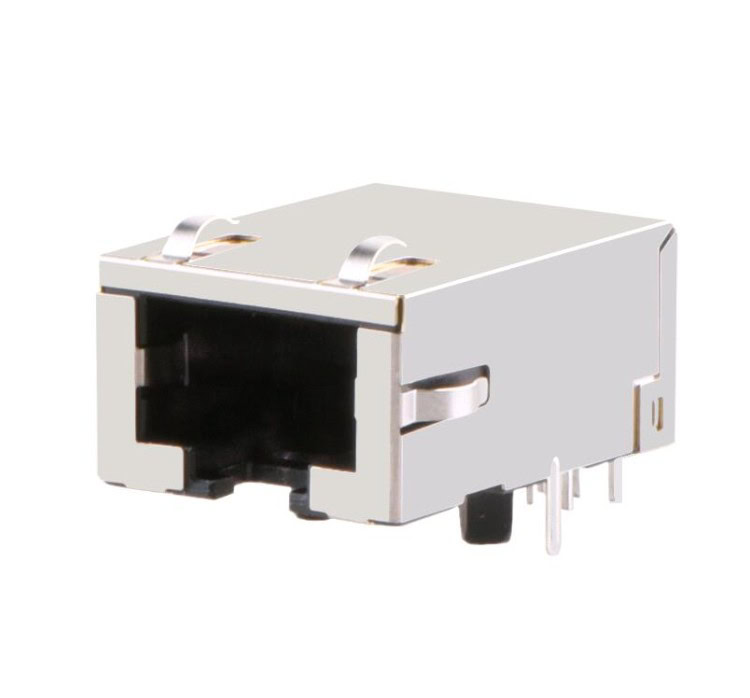

ICM RJ45 2.5Gigabit Base-T Ultra Low Profile, Tab down 1X1 without LEDs PN#J11JK2003NPA1

VITALCONN ICM RJ45 Part Number: J11JK2003NPA1 is a 1*1 port Magnetic Modular Jack, 2.5Gigabit Base-T, without LEDs, 6u” gold plated, through hole mounting, tab down.

Application LAN	Non-PoE
Latch	Tab Down
LED	Without LED
Mounting Type	Through Hole
Number of Ports	1*1
Orientation	90° Right Angle
Shielding	Shielded
Speed	2.5G

J11JK2003NPA1

SPECIFICATIONS:

1.MATERIALS AND FINISH
HOUSING:GLASS FILED POLYESTER UL94V-0 PANTONE BLACK CONTACT:PHOSPHOR BRONZE T=0.35MM FLAT PIN PLATING:6u”GOLD PLATING OVER NICKEL
SHIELD: 0.20MM THICKNESS COPPER ALLOY WITH NICKEL PLATED SIGNAL PINS & LED PINS: TIN(SN)/NICKEL PLATING

2.MECHANICAL CHARACTERISTICS
DURABILITY: 750(MODULAR JACK) INSERTION/PLUG DIMENSION CYCLES

3.ELECTRICAL
INSULATION RESISTANCE: 500 MEGOHMS MIN. DIELECTRIC STRENGTH: 2250VDC.

4.ENVIRONMENTAL
OPERATING TEMPERATURE: 0℃~+70℃; STORAGE TEMPERATURE:-40℃~+85℃
