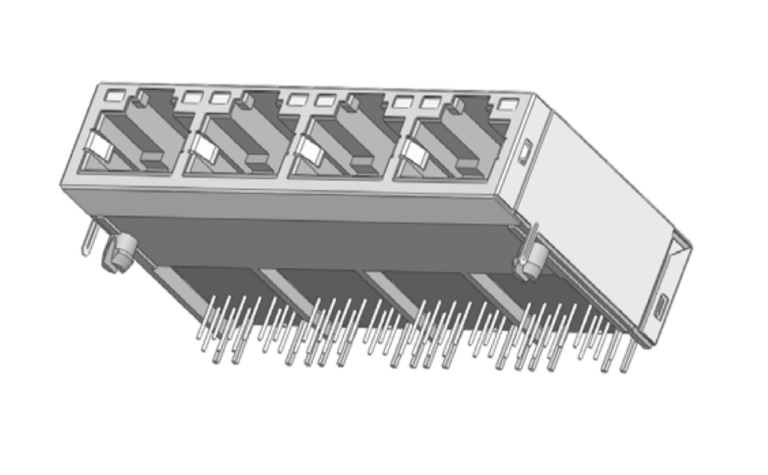

Magnetic Modular Jack RJ45 1*4 Port, Tab Up, 10G Base-T, Shielded, W/ LEDs J14JT-9T6X

◆ RJ45 1*4 Tab Up

◆ 10G Base-Tx

◆ LED Option

◆ Shell Spring Option

◆ Hi-pot:1500VAC，60S;

◆ OCL:120uH Min @100KHz 0.1VRMS With 8mADC

◆ Contact Resistance:30mΩ Max

◆ Operating Lift: 750Cycles

◆ Operating Temperature : -40°C TO +85°C

◆ Storage Temperature : -40°C TO +85°C

◆ RoHS Compliant / Halogen Free Option
