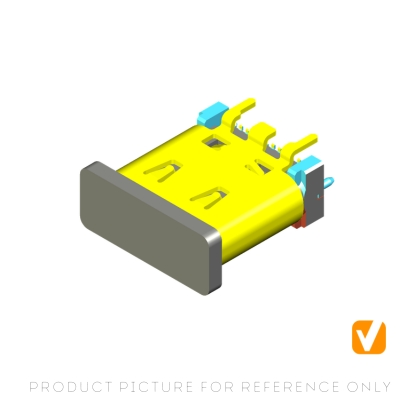

USB Type-C 24-Pin SMT Connector UC-101579-12003-F9
The VITALCONN UC-101579-12003-F9 is a USB Type-C 24-pin SMT connector supporting USB 3.x and Power Delivery up to 60W for consumer electronics and industrial applications.
| Mounting Type | Surface Mount (SMT) |
|---|---|
| Pin Count | 24-Pin |
| USB Standard | USB Type-C |
| Current Rating | 3A |
| Voltage Rating | 20V |
| Contact Plating | Gold Flash |
| Housing Material | LCP, UL94V-0 |
| Operating Temperature | -40C to +85C |
Product Overview
The UC-101579-12003-F9 USB Type-C 24-pin SMT connector from VITALCONN is a compact USB Type-C receptacle engineered for modern PCB designs requiring reversible high-speed connectivity. Featuring a 24-pin configuration in a surface-mount (SMT) package, this connector supports USB 3.x data rates and USB Power Delivery up to 60W (3A at 20V). The LCP UL94V-0 housing and gold-plated phosphor bronze contacts ensure reliable signal integrity and long-term durability with 10,000 mating cycles. The UC-101579-12003-F9 is ideal for smartphones, tablets, IoT devices, and industrial applications requiring robust USB Type-C connectivity.
Product Specifications
| Parameter | Value |
|---|---|
| Model Number | UC-101579-12003-F9 |
| Product Type | USB Type-C Receptacle |
| Pin Count | 24-Pin |
| Mounting Type | Surface Mount (SMT) |
| USB Standard | USB Type-C (USB 3.x Compatible) |
| Rated Current | 3A (VBUS/GND), 0.25A (signal) |
| Rated Voltage | 20V DC Max |
| Contact Resistance | 40mΩ Max |
| Insulation Resistance | 100MΩ Min @ 500V DC |
| Dielectric Withstanding Voltage | 100V AC for 1 minute |
| Housing Material | LCP, UL94V-0, Black |
| Contact Material | Phosphor Bronze C5210 |
| Contact Plating | Gold Flash on contact area, Tin on solder tails |
| Shell Material | SUS304 Stainless Steel, Nickel-Plated |
| Mating Cycles | 10,000 cycles minimum |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| RoHS Compliance | Yes |
Key Features
- USB Type-C Reversible: Fully compliant with USB Type-C specification for modern device connectivity.
- 24-Pin Full-Featured: Complete 24-pin configuration supporting USB 3.x data and USB PD power delivery.
- Surface-Mount Package: SMT mounting enables automated assembly and compact PCB layouts.
- 60W Power Delivery: Supports USB PD up to 3A at 20V for fast-charging applications.
- 10,000 Mating Cycles: Gold-plated contacts ensure long-term reliability in consumer and industrial devices.
- UL94V-0 LCP Housing: High-temperature liquid crystal polymer suitable for reflow soldering.
Applications
- Smartphones, tablets, and mobile devices
- USB chargers and power adapters
- Wireless earbuds and wearables
- IoT sensors and smart home devices
- Industrial controllers and HMI panels
- Medical and portable diagnostics
Why Choose VITALCONN?
VITALCONN is a trusted USB Type-C connector manufacturer with ISO-9000 certified facilities. The UC-101579-12003-F9 USB Type-C 24-pin SMT connector is part of our comprehensive USB Type-C portfolio. Contact us for samples and OEM pricing.
