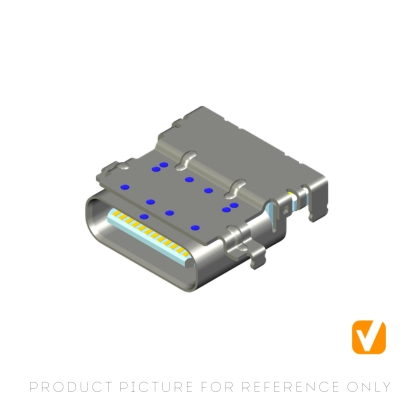

USB Type-C 24-Pin Mid-Mount SMT Connector UC-101607-12103-F9
The VITALCONN UC-101607-12103-F9 is a USB Type-C 24-pin mid-mount SMT connector with CH=-0.64mm profile, supporting USB 3.x and Power Delivery for ultra-slim device designs.
| Mounting Type | Mid-Mount SMT |
|---|---|
| Pin Count | 24-Pin |
| USB Standard | USB Type-C |
| Current Rating | 3A |
| Voltage Rating | 20V |
| Center Height | -0.64mm |
| Contact Plating | Gold Flash |
| Housing Material | LCP, UL94V-0 |
| Operating Temperature | -40C to +85C |
Product Overview
The UC-101607-12103-F9 USB Type-C 24-pin mid-mount SMT connector from VITALCONN is an ultra-low-profile USB Type-C receptacle designed for slim and compact electronic devices. Featuring a 24-pin mid-mount SMT configuration with a CH=-0.64mm profile, this connector sits partially recessed within the PCB, minimizing overall device thickness while maintaining full USB Type-C functionality. Supporting USB 3.x data rates and USB Power Delivery up to 60W, the UC-101607-12103-F9 is ideal for ultra-thin laptops, tablets, smartphones, and portable electronics where space is at a premium.
Product Specifications
| Parameter | Value |
|---|---|
| Model Number | UC-101607-12103-F9 |
| Product Type | USB Type-C Receptacle, Mid-Mount |
| Pin Count | 24-Pin |
| Mounting Type | Mid-Mount SMT |
| Center Height (CH) | -0.64mm |
| USB Standard | USB Type-C (USB 3.x Compatible) |
| Rated Current | 3A (VBUS/GND), 0.25A (signal) |
| Rated Voltage | 20V DC Max |
| Contact Resistance | 40mΩ Max |
| Insulation Resistance | 100MΩ Min @ 500V DC |
| Dielectric Withstanding Voltage | 100V AC for 1 minute |
| Housing Material | LCP, UL94V-0, Black |
| Contact Material | Phosphor Bronze C5210 |
| Contact Plating | Gold Flash on contact area, Tin on solder tails |
| Shell Material | SUS304 Stainless Steel, Nickel-Plated |
| Mating Cycles | 10,000 cycles minimum |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| RoHS Compliance | Yes |
Key Features
- Mid-Mount Low Profile: CH=-0.64mm mid-mount design minimizes overall device thickness.
- USB Type-C Reversible: Fully compliant with USB Type-C specification for modern connectivity.
- 24-Pin Full-Featured: Complete pinout supporting USB 3.x data and USB PD power delivery.
- Ultra-Slim Design: Ideal for tablets, ultrabooks, and portable devices with strict height constraints.
- 60W Power Delivery: Supports USB PD for fast-charging applications up to 3A at 20V.
- 10,000 Mating Cycles: Durable gold-plated contacts ensure long service life.
Applications
- Ultra-thin laptops and tablets
- Smartphones and mobile devices
- Portable power banks and chargers
- IoT and wearable electronics
- Medical portable devices
- Industrial handheld terminals
