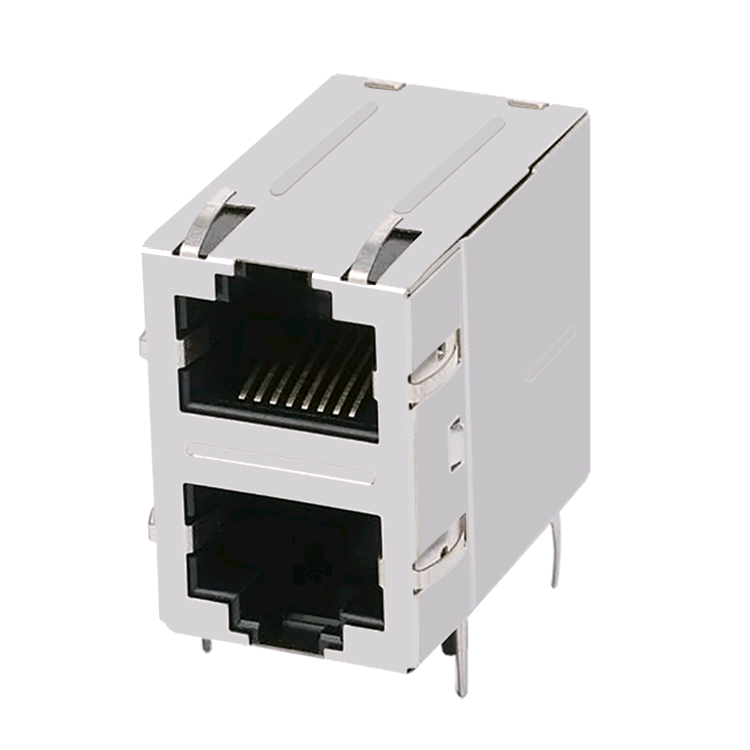

RJ45 PCB Jack 2×1 Dual Port Connector JS212101DPB7

The VITALCONN JS212101DPB7 is an RJ45 PCB Jack 2×1 dual port connector with through-hole mounting, shielded design, PBT UL94V-0 housing, -40C to +85C.

Mounting Type	Through Hole
Number of Ports	2*1
Speed	10/100 Base-T
PoE	Non-PoE
LED	Without LED
Shielding	Shielded
Orientation	90 Degree Right Angle
Operating Temperature	-40C to +85C

RJ45 PCB Jack 2×1 Dual Port Connector JS212101DPB7 Product Specification

Product Overview

The JS212101DPB7 RJ45 PCB Jack dual port connector from VITALCONN is a dual-port RJ45 PCB jack designed for space-efficient networking applications. Featuring a 2×1 port configuration with through-hole mounting, this RJ45 PCB Jack dual port connector provides reliable Ethernet connectivity in a compact footprint. The shielded design ensures excellent EMI performance while the robust construction with UL94V-0 housing delivers long-term durability. The JS212101DPB7 is ideal for network switches, hubs, and patch panels requiring multiple RJ45 ports in a dense layout.

Product Specifications

Parameter	Value
Model Number	JS212101DPB7
Connector Type	RJ45 PCB Jack, Dual Port (2×1)
Mounting Type	Through-Hole (DIP)
Number of Ports	2 (2×1)
Speed Rating	10/100 Mbps
Number of Positions	8P8C
Shielding	Shielded
Housing Material	PBT, UL94V-0, Black
Contact Material	Phosphor Bronze, Gold-Plated
Operating Temperature	-40 to +85 Celsius
RoHS Compliance	Yes

Table: JS212101DPB7 RJ45 PCB Jack specifications

Key Features

Dual-Port Design: 2×1 configuration saves PCB space by providing two RJ45 ports in a single connector body.
Through-Hole Mounting: Robust DIP pins ensure strong mechanical attachment for vibration-prone environments.
Shielded Construction: Metal shielding minimizes EMI and crosstalk between adjacent ports for reliable data transmission.
8P8C Configuration: Standard 8-position 8-contact design compatible with all Ethernet patch cables.
UL94V-0 Housing: High-temperature PBT housing rated UL94V-0 for flame retardancy.
Wide Temperature Range: -40C to +85C operating temperature for industrial applications.

Applications

The JS212101DPB7 RJ45 PCB Jack dual port connector is widely used in:

Network switches and hubs
Patch panels and distribution frames
Industrial Ethernet equipment
Router and gateway devices
Telecommunications infrastructure
Building automation systems

Compatibility and Standards

The JS212101DPB7 RJ45 PCB Jack dual port connector complies with:

IEEE 802.3 Ethernet standard
UL94V-0 flammability rating
RoHS 2.0 / REACH compliance

Why Choose VITALCONN?

VITALCONN is a leading RJ45 connector manufacturer with ISO-9000 certified facilities. The JS212101DPB7 RJ45 PCB Jack dual port connector is part of our comprehensive RJ45 portfolio. With UL certification and major OEM customers including JABIL, H3C, and KAON, VITALCONN delivers reliable networking connectors worldwide. Contact us for samples and OEM pricing.
