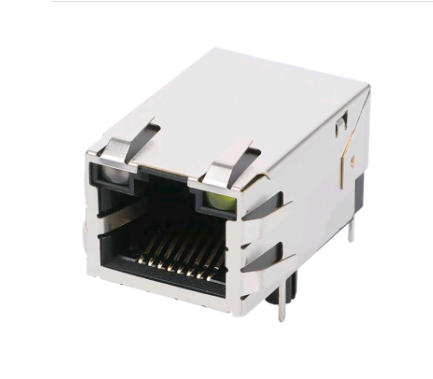

RJ45 ICM Single Row Gigabit With LED J11EG41A6DPF1

The VITALCONN J11EG41A6DPF1 is a 1×1 RJ45 ICM connector with LED indicators with integrated magnetics for Gigabit Ethernet.

Mounting Type	Through-Hole
Number of Ports	1×1
Speed	10/100/1000 Mbps
PoE	Non-PoE
LED	With LED
Shielding	Shielded
Integrated Magnetics	Yes
Operating Temperature	-40C to +85C

RJ45 ICM Single Row Gigabit With LED J11EG41A6DPF1 Product Specification

Product Overview

The J11EG41A6DPF1 RJ45 ICM single row Gigabit from VITALCONN is a high-performance RJ45 connector with integrated magnetics (ICM) designed for Gigabit Ethernet networking applications. This 1×1 through-hole connector provides reliable 10/100/1000 Mbps data transmission with LED indicators, making it ideal for industrial Ethernet switches, routers, and embedded systems. The robust design features LCP UL94V-0 housing, copper-alloy shielding, and gold-plated contacts for excellent signal integrity and EMI performance in demanding environments.

Product Specifications

Table: J11EG41A6DPF1 RJ45 ICM connector specifications

Parameter	Value
Model Number	J11EG41A6DPF1
Connector Type	RJ45 ICM, 1×1
Mounting Type	Through-Hole
Speed Rating	10/100/1000 Mbps (Gigabit Ethernet)
Positions	10P
Contacts	8C
LED Indicator	Green/Yellow Dual-Color
Housing Material	Thermoplastic LCP, UL94V-0, Black
Contact Material	Phosphor Bronze, Gold-Plated
Shield Material	Copper Alloy, Nickel-Plated
Operating Temperature	-40°C to +85°C
Durability	750 Mating Cycles Minimum
RoHS Compliance	Yes

Key Features

Gigabit Performance: Supports 10/100/1000 Mbps Ethernet with low insertion loss and crosstalk.
Integrated Magnetics: Built-in transformer module eliminates external magnetics, simplifying PCB design.
LED Status Indicators: Dual-color LEDs for link/activity feedback.
UL94V-0 Housing: High-temperature LCP housing rated UL94V-0 for flame retardancy.
EMI Shielding: Copper-alloy shield with nickel plating minimizes electromagnetic interference.
Wide Temperature Range: -40°C to +85°C for harsh industrial environments.

Applications

The J11EG41A6DPF1 RJ45 ICM single row Gigabit is widely used in:

Industrial Ethernet switches and routers
Network interface cards (NIC) and embedded computing
Industrial automation and control systems
IoT gateways and edge computing devices
Telecommunications equipment
Factory automation and SCADA systems
Building automation and security systems
Medical and laboratory networking equipment

Compatibility and Standards

The J11EG41A6DPF1 RJ45 ICM single row Gigabit is designed to comply with:

IEEE 802.3 Gigabit Ethernet standard
UL94V-0 flammability rating
RoHS 2.0 / REACH compliance

Frequently Asked Questions

What is the operating temperature range of the J11EG41A6DPF1?

The J11EG41A6DPF1 operates from -40°C to +85°C, suitable for harsh industrial networking environments.

Does the J11EG41A6DPF1 include integrated magnetics?

Yes, the J11EG41A6DPF1 features integrated magnetics within the connector housing, eliminating external transformer modules.

Is the J11EG41A6DPF1 RoHS compliant?

Yes, the J11EG41A6DPF1 is fully RoHS 2.0 and REACH compliant, meeting global environmental regulations.

Can I request samples?

Yes, VITALCONN provides engineering samples for design-in evaluation. Contact our team for samples and technical support.

Why Choose VITALCONN RJ45 ICM single row Gigabit?

VITALCONN is a leading RJ45 connector manufacturer with 200+ employees and 5000m² facilities. All products are produced under ISO-9000 quality systems with UL certification. With monthly capacity of 15 million pieces, VITALCONN serves JABIL, H3C, KAON, and Free. Contact our engineering team for samples, datasheets, and OEM pricing.

Refer to the attached J11EG41A6DPF1 datasheet for mechanical drawings, PCB layout, and electrical specifications.
