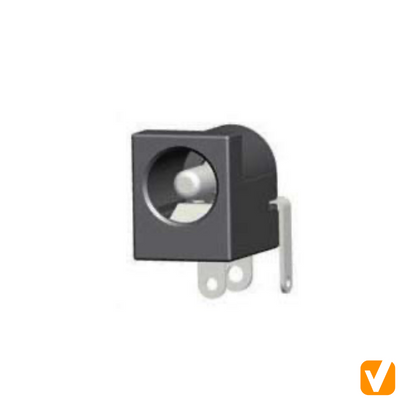

Vitalconn DC Power Jack PJSHD-2014L Pin 2.0φ

Specification
1. Rating :1A30VDC/3A12VDC/5A12VDC2.Withstanding voltage AC 500V,50 or 60Hz for 1 minute
3. Insulation resistance ( initial )100MΩ( min .) at 500VDC
4. Contact resistance ( initial )50m2max. at AC 100mA( max )1KHz
5. Insertion & Extraction force Initial :0.3 to 3.0Kgf After life test :0.3 to 3.0Kgf
6. Life test (10-20 cycle / minute )5,000 cycles unloading
