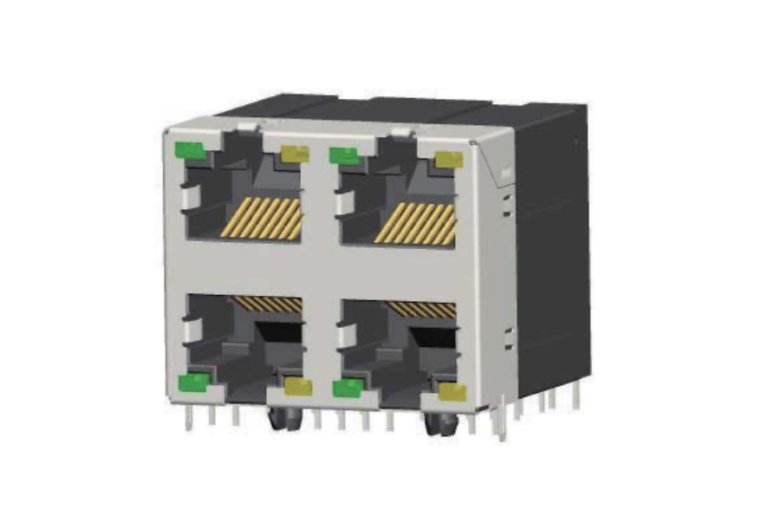

Modular Jack RJ45 2×2 port, Half Shielded, W/ LEDs, JS22-8188YX
Material :
- Housing : Thermoplastic UL94V-0, black or gray color .
- Contact :
- Round Contacts :φ0.45mm Fully Gold Copper Alloy
- Stamped Contacts :0.35mm Thick Selective Gold Plated Copper Alloy
- Gold plating options : Gold Flash, 6u”, 15u”, 30u”, 50u”.
- Shield : Nickel Plated Alloy
| Latch | Both |
|---|---|
| LED | With LED |
| Mounting Type | |
| Number of Ports | 2*2 |
| Orientation | 90° Right Angle |
| Shielding | Half Shielded |
*Please note that above specification is subject to change without notice, if you want to get the latest PDF files of the spec or the specific part number. please send an email to sales@vitalconn.com. Our sales expert will get back to you within 24 hours.
