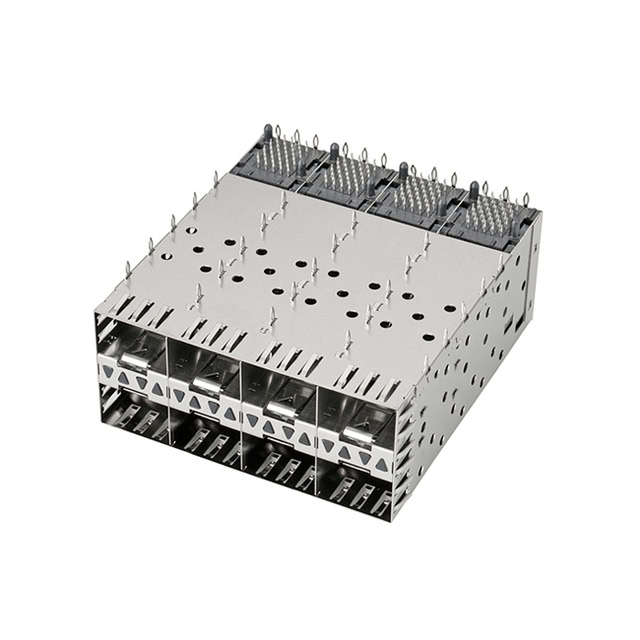

Optical Fiber Connector Stacked 2*4 port SFP Cage with CONN with inner and outer Light Pipes SC242
VITALCONN SFP CAGE Stacked connector, Part Number: SC242 is 2*4 port, press fit pin Type, with inner and outer 4 light pipes (without light pipes or 2 inner/outer light pipes are available, too). Materials: Nickel Silver, thickness 0.25mm, Packaging: Tray Packaging, Temperature: Range: -40℃ to +85℃.
| MFR Name | バイタルコン |
| Part Number | SC242 |
| Part Description | SFP Cage+Connector 2*4 Port, Press Fit, with inner and outer light pipes |
| No. of Ports | 2*4 |
| PCB Mount Angle | Right Angle |
| Light Pipe | Yes (without light pipes or 2 inner/outer light pipes are available, too) |
| Terminal Type | Press Fit |
| Heat Sink | N/A |
PART SPECIFICATIONS :
MATERIAL :
CAGE : NICKEL SILVER , THICKNESS 0.25mm LINGH Т PIPE : POLYCARBONATE , COLOR : CLEAR .
CONNECTOR :
PLASTIC HOUSING : HIGH TEMPERATURE LCP ,UL94 V -0.
SPRING : STAINLESS STEEL , THICKNESS 0.20mm
CONTACTS : PHOSPHOR BRONZE , THICKNESS 0.20mm
PLATING :15u” MIN . GOLD ON MATING AREA, 150u” MIN . MATE TIN ON SOLDERTAILS .
PACKAGING : TRAY PACKAGING .
TEMPERATURE RANGE :-40℃ TO +85℃
