RJ45 2×2 Shielded with LED Gold Flash JS224141DPC7(Cross out TE 2041376-2)

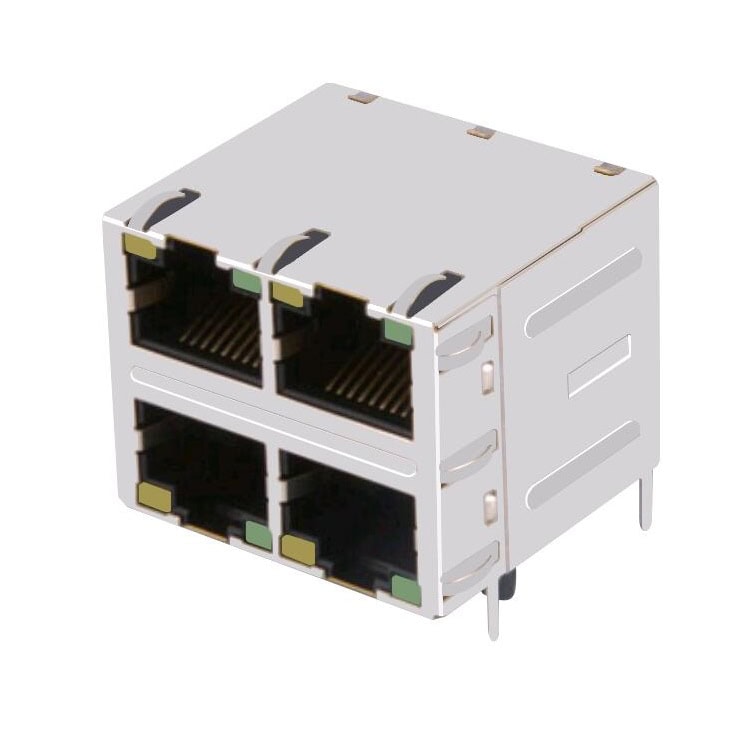

This is a 2×2 port (four-port) RJ45 modular jack with shielded construction and integrated status LEDs. It features a Gold Flash plating on the contacts and is designed for through-hole mounting without an integrated transformer.

JS224141DPC7

Product Overview

The JS224141DPC7 is a four-port RJ45 connector from Vitalconn, designed for high-density networking applications. It is a shielded, through-hole modular jack with Gold Flash gold plating and built-in LEDs for visual status indication. The gold flash thickness is suitable for standard-duty applications .

Product Specifications

Configuration: 2×2 ports (four RJ45 jacks)
Type: RJ45, 8P8C, Shielded, Thru Hole
Gold Plating: Gold Flash (G/F)
LED: Yes (with status indicator)
Shield: Yes
Mounting: Through Hole (THT)
Tab Type: Both (supports Tab Up and Tab Down)
Compliance: RoHS Compliant
Manufacturer: Vitalconn

Product Features

Four-Port High-Density Design: Provides four RJ45 connections in a 2×2 stacked configuration, saving PCB space.
Shielded Construction: Provides EMI/RFI protection for reliable signal integrity in noisy environments.
Integrated LED Indicators: Built-in LEDs allow for easy monitoring of network link and activity status.
Through-Hole Mounting: Ensures robust mechanical connection to the PCB.
Gold Flash Plating: Provides cost-effective contact durability for standard applications.

Applications

This connector is ideal for high-port-density networking equipment, including:

Network switches and routers
Patch panels
Industrial Ethernet equipment
Data communication devices
Server and storage systems

Packing Details

Specific packing details for the JS224141DPC7 model indicate that it comes in tray packaging. Each tray contains 18 products, and 5 trays are stacked together with a label and packaging tapes for final shipment .

FAQ

Q1: What type of port configuration does the JS224141DPC7 have?
A1: This model features a 2×2 configuration, meaning it has 4 RJ45 ports in a stacked design .

Q2: Does this connector have integrated magnetics?
A2: No, the JS224141DPC7 is a standard RJ45 modular jack without integrated magnetics. It is a pure connector with shielding and LEDs .

Q3: What is the gold plating thickness on the contacts?
A3: The contacts feature Gold Flash (G/F) plating, which is a thinner and more cost-effective option compared to 15u” or 30u” gold plating .
