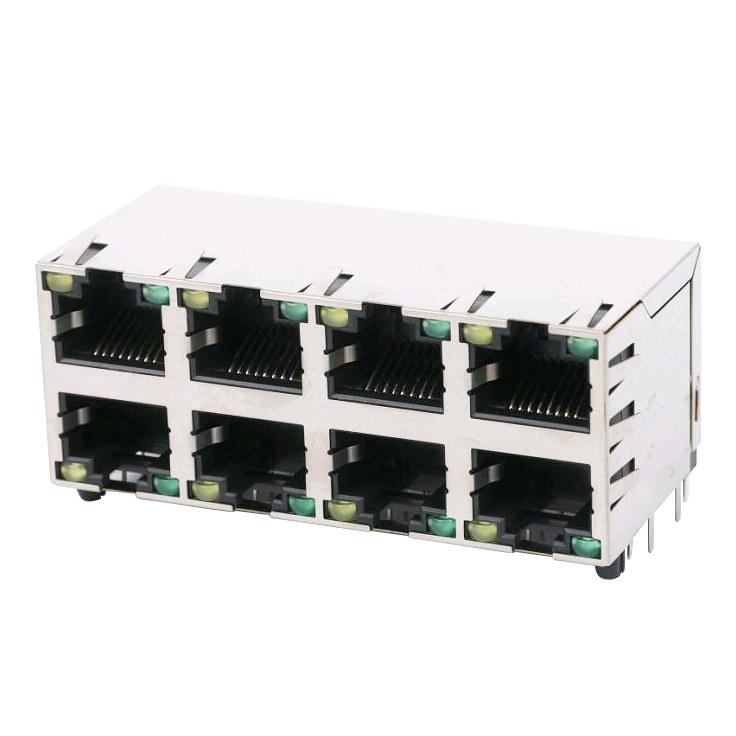

ICM RJ45 2×4 5G Base-T with LED 50u Gold Plated J24DF1007DLC7(Cross out UDE GM4-ZZ-0037)

Product Overview

The J24DF1007DLC7 is a high-density, board-mountable Ethernet connector that consolidates eight RJ45 ports, magnetics, and LEDs into a single shielded unit. This integrated design enhances reliability, minimizes PCB space usage, and complies with RoHS requirements.

Product Specifications

•  Configuration: 2 rows x 4 columns (8 ports total).
•  Data Rate: Designed for 5G Base-T applications.
•  Gold Plating: 50µ” gold plating on contact area.

 Electrical Specifications (@25°C):

•  Insertion Loss: -0.50dB MAX (1~50 MHz); -1.0dB MAX (50~125 MHz); -2.0dB MAX (125~300 MHz).
•  Return Loss (Load 100Ω): -20dB MIN (1~50 MHz); -20+8log(Freq/50) dB MIN (50~200 MHz); -15+30log(Freq/200) dB MIN (200~300 MHz).
•  CM to CM Attenuation: -25dB MIN (1~200 MHz); -20dB MIN (200~300 MHz).
•  CM to DM Conversion: -35dB MIN (1~50 MHz); -30dB MIN (@125 MHz); -27dB MIN (@200 MHz); -24dB MIN (@300 MHz).
•  Cross Talk: -30dB MIN (1~125 MHz); -25dB MIN (125~300 MHz).
•  OCL @ 100KHz, 0.1V: 160 µH MIN.
•  Hi-Pot Test: 2250 VDC 60 seconds (PCB side to Cable side).
•  Turns Ratio: 1:1 ±3% for all four channels.
•  Compliance: RoHS Compliant.

Product Features

• 5G Base-T Performance: Engineered to meet the stringent electrical requirements for 5G data transmission.
•  High-Density Design: Provides eight ports in a 2×4 configuration, optimizing PCB space.
•  Superior Contact Plating: 50µ” gold plating ensures excellent conductivity and long-term reliability.
•  Integrated Magnetics: Simplifies circuit design by incorporating all necessary transformer and filter components.
•  Visual Status Indication: Built-in LEDs provide clear link and activity status for each port.

Applications

This connector is ideal for high-speed networking equipment requiring dense, reliable 5G Ethernet connectivity, such as:

• 5G base stations and infrastructure equipment
•  High-performance network switches and routers
• Data center equipment
•  Enterprise networking hardware

Packing Details

Specific packing details for the J24DF1007DLC7 model are not provided in the available documentation. For accurate packing information (e.g., tray/carton quantities), please consult the manufacturer or product datasheet.

FAQ

Q1: What is the maximum data speed supported by this connector module?
A1: This module is specifically designed for 5G Base-T applications, supporting the associated high-speed data rates.

Q2: What is the significance of the 50µ” gold plating?
A2: The 50µ” gold plating provides superior corrosion resistance and higher durability for repeated mating cycles, ensuring stable signal transmission over the product’s lifetime.

Q3: What are the critical electrical isolation specifications?
A3: The connector features a Hi-Pot test rating of 2250 VDC for 60 seconds between the PCB side and the cable side, ensuring robust electrical isolation and safety.
