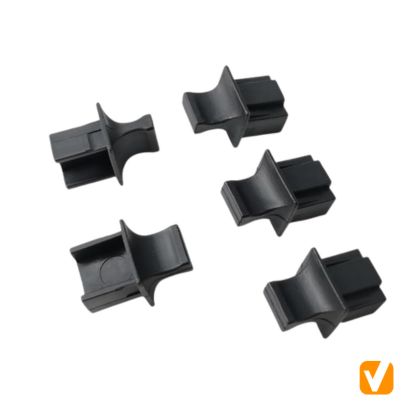

Pro Flat Mouth RJ45 Dust Plug DC-DB001-D1 VITALCONN

RJ45 Dust plug by VITALCONN. The DC-DB001-D1 is a flat mouth dust plug designed to protect RJ45 8P8C Ethernet ports from dust ingress.

DC-DB001-D1 Flat Mouth RJ45 Dust Plug Product Specification

Product Overview:

The DC-DB001-D1 RJ45 Dust plug is designed to protect RJ45 8P8C network ports from dust and debris. Its flat mouth push-in design provides a secure fit. Engineered to precise tolerances per drawing D-DC-DB001-D1 Rev A0.

Product Specifications:

The DC-DB001-D1 Flat Mouth RJ45 Dust plug specifications:

Part Number: DC-DB001-D1

Drawing Number: D-DC-DB001-D1

Revision: A0 (2026-07-05)

Drawing Title: D-SUB09 (M),HDDB15 (M)

Design Type: Flat Mouth

Sheet / Size / Unit: 1 of 1 / A4 / mm

FCN: D1

General Tolerance (X.XXX): ± 0.005 mm

General Tolerance (X.XX): ± 0.05 mm

General Tolerance (X.X): ± 0.3 mm

General Tolerance (X.): ± 0.5 mm

Angle Tolerance: ± 0.1°

Product Features

The DC-DB001-D1 Flat Mouth RJ45 Dust plug key characteristics:

Flat Mouth Design: Push-in friction fit for secure seating on RJ45 8P8C Ethernet ports.

Precision Tolerances: Manufactured to X.XXX ± 0.005 mm general tolerance for consistent dimensional accuracy.

Two-in-One Compatibility: Form factor compatible with both D-SUB 9-pin male and HDDB 15-pin male panel cutouts.

Single-Piece Construction: Tool-free push-in installation and removal.

Packing Details:

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.

Applications:

Protection of RJ45 8P8C Ethernet ports during storage, shipping, and equipment downtime.
Network equipment with standard RJ45 8P8C jacks in environments where dust ingress is a concern.
Equipment panels and enclosures with RJ45 8P8C port openings requiring dust covers.

FAQ

Q: What type of port does the DC-DB001-D1 RJ45 Dust plug protect?

A: It is designed to protect standard RJ45 8P8C Ethernet ports from dust and debris during storage, shipping, and equipment downtime.

Q: What does the flat mouth design of the DC-DB001-D1 Flat Mouth RJ45 Dust plug mean?

A: The flat mouth design refers to the push-in interface style that seats securely on RJ45 8P8C jacks, providing dust protection without requiring additional tools or fasteners.

Q: What connectors is the DC-DB001-D1 Ethernet RJ45 Dust plug compatible with in terms of panel cutout?

A: Its form factor is dimensionally compatible with D-SUB 9-pin male and HDDB 15-pin male connector panel cutouts, while the dust plug itself protects RJ45 8P8C ports.
