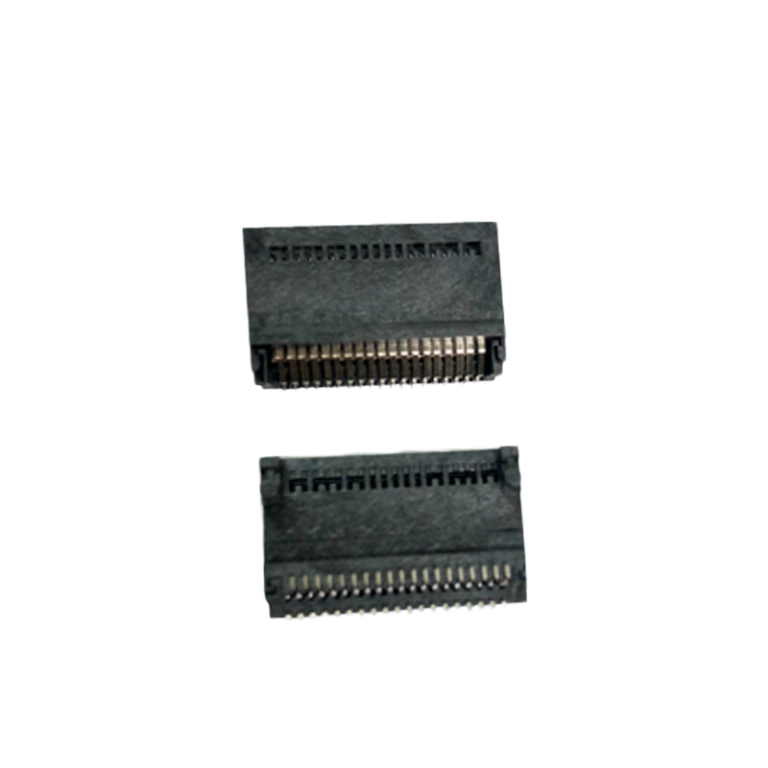

QSFP+ 28G 1*1 Connector 0.8mm pitch SMT 15u” Gold Plated PN#S5C21H0A00BA4

VITALCONN QSFP+ 28G 1*1 CONN, Part Number: S5C21H0A00BA4 is high temperature LCP housing, nickel cooper alloy terminal. Temperature: Range: -40℃ to +85℃.

Mounting Type	SMD
Cage Connector Type	استضافة CONN

S5C21H0A00BA4

MFR Name	فيتالكون
Part Number	S5C21H0A00BA4
Part Description	QSFP 28G 1*1 CONN 0.8mm pitch SMT
No. of Ports	1*1
PCB Mount Angle	Right Angle
Light Pipe	N/A
Terminal Type	through hole
Heat Sink	N/A

NOTE :
1. Material :

HOUSING : HIGH TEMERATURE LCP , BLACK , L 94V- OFLAME RETARDA

2.TERMINAL:

NICKEL COPPER ALLOY. PLATING SPEC AS BELOW :

OPTION 1
CONTACT AREA PLATE NICKEL1.25um MIN , PLATE Gold 0.38um MI SOLDER AREA PLATE NICKEL 1.25um MIN , PLATE MATT TIN 1.54.E
OPTION 2
CONTACT AREA PLATE NICKEL 1.25um MIN , PLATE Gold 0.76um MI 小 SOLDER AREA PLATE NICKEL .1.25um MIN , PLATE MATT TIN 1.54.E

3. ELELCTRICAL CHARACTERISTICS

CONTACT CURRENT RATING :0.5AMPERE vOLTAGE RATING :30VAC
CONTACT RESISTACE :50 MILLOHMS MAX
DIELECTRIC WITHSTANDING vOLTAGE :300VDC

4.ENVIRONMEENT:

OPERATION TEMPERATURE :-40° CTO 85° C
