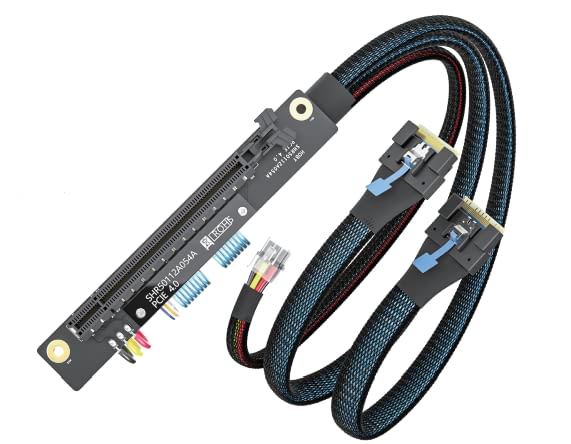

PCIe X16 to 2x SlimSAS SFF-8654 8i Cable – VTC-APEBEOP30001-K2

The VITALCONN VTC-APEBEOP30001-K2 is a PCIe X16 to 2x SlimSAS SFF-8654 8i splitter cable that divides a single x16 host port into two independent x8 links. Supports PCIe 4.0 at 16 GT/s per lane with 30 AWG high-frequency copper conductors and 85 ohm controlled impedance. Ideal for NVMe storage expansion, GPU enclosures, and disaggregated compute-storage architectures.

Product Type	PCIe X16 to 2x SlimSAS SFF-8654 8i Splitter Cable
Protocol	PCIe 4.0 (backward compatible 3.0/2.0/1.0)
Data Rate	16 GT/s per lane
Bifurcation	x16 to 2x x8
Input Connector	1x PCIe x16 male edge-card
Output Connector	2x SlimSAS SFF-8654 8i
Conductor	30 AWG high-frequency copper, twin-axial
Differential Impedance	85±5Ω
Shielding	Per-pair Al foil + overall braid
Mating Cycles	≥250 cycles
Cable Length	OEM custom (built to order)
Compatible Devices	Graphics card, PCIe SSD, RAID card, NVMe enclosure
Compliance	RoHS 2.0, China RoHS, REACH SVHC

The PCIe X16 to 2x SlimSAS SFF-8654 8i cable VTC-APEBEOP30001-K2 from فيتالكون splits a single PCIe x16 host slot into two independent SlimSAS SFF-8654 8i ports, each carrying 8 PCIe lanes. One end of the cable terminates to a gold-finger PCIe x16 edge-card plug that seats directly in a motherboard or riser slot; the other end fans out to two latching SFF-8654 8i connectors that attach to NVMe drive enclosures, add-in cards, or GPU expansion boxes. Each branch sustains the full PCIe 4.0 rate of 16 GT/s per lane, delivering 16 GB/s of usable bandwidth per port for storage and compute traffic.

Engineered for loss budgets typical of server backplanes, the PCIe X16 to 2x SlimSAS SFF-8654 8i cable is built on 30 AWG high-frequency copper twin-axial conductors with 85 ± 5 Ω differential impedance. The dual shielding scheme — per-pair aluminum foil plus an overall braided wrap — keeps crosstalk and EMI well inside PCIe 4.0 margins even when the two branches are dressed through dense chassis harnesses. Straight-on connectors at both ends simplify routing in 1U and 2U systems where vertical clearance is limited.

Mating durability is rated at 250+ insertion cycles, and the cable is downward compatible with PCIe 3.0/2.0/1.0 hosts and devices. Browse the complete High Speed Cable portfolio on our site, or request OEM custom lengths built to your exact chassis dimension.

PCIe X16 to 2x SlimSAS SFF-8654 8i Cable Specifications

Part Number: VTC-APEBEOP30001-K2
Product Type: PCIe X16 to 2x SlimSAS SFF-8654 8i Splitter Cable
Input Connector: 1x PCIe x16 male edge-card (gold finger, standard key)
Output Connectors: 2x SlimSAS SFF-8654 8i (x8 lanes each)
Bifurcation: PCIe x16 to 2x PCIe x8 (requires BIOS/CPU bifurcation support)
Protocol Support: PCIe 4.0 (backward compatible with PCIe 3.0/2.0/1.0)
Data Rate: 16 GT/s per lane
Conductor: 30 AWG high-frequency copper, twin-axial
Differential Impedance: 85 ± 5 Ω
Mating Cycles: ≥ 250
Compatible Devices: graphics cards, PCIe SSDs, RAID cards, NVMe enclosures
Cable Length: OEM custom (built to order)
Compliance: RoHS 2.0, China RoHS, REACH SVHC

Key Features

Dual SFF-8654 8i outputs: a single x16 slot drives two independent x8 devices — ideal for NVMe storage and GPU expansion without occupying extra slots.
PCIe 4.0 ready: 16 GT/s per lane with generous eye margin, and full backward compatibility with PCIe 3.0/2.0/1.0 platforms.
High-frequency copper: premium conductor material lowers attenuation and crosstalk to preserve signal integrity across the full run.
85 Ω impedance control: differential pairs tuned to the PCI-SIG specification minimize reflections at 16 GT/s.
Straight-on connector design: straight headers at both ends of the PCIe X16 to 2x SlimSAS SFF-8654 8i cable make cable dressing simple in compact server and workstation interiors.
250+ mating cycles: ruggedized contacts rated for repeated service access in data center racks.
OEM custom lengths: built to your chassis drawing so branches arrive pre-cut, labeled, and terminated.
Quality assurance: every cable is factory-tested for continuity, impedance, and link training before shipment under our ISO 9000 quality system.

Packing Details

Individual anti-static bag per cable
Inner carton with foam cushioning, 20 pcs per inner carton
Export-grade outer carton, 4 inner cartons per master
Each label carries part number VTC-APEBEOP30001-K2, quantity, and RoHS marking
OEM / ODM packaging and labeling available on request

PCIe X16 to 2x SlimSAS SFF-8654 8i Cable Applications

HPC and AI servers: fan out a spare x16 slot to dual NVMe drive groups or accelerator cards in the same rack unit.
GPU expansion boxes / eGPU: connect external graphics enclosures to workstation motherboards over one tidy cable set.
Data center PCIe extension and splitting: disaggregate PCIe devices from compute boards in modular server architectures.
Disaggregated storage-compute systems: attach JBOD-style NVMe backplanes to host CPUs without dedicated switch silicon.
Graphics workstations and custom servers: add high-bandwidth devices where slot real estate is scarce.

Frequently Asked Questions

Q1: Does the PCIe X16 to 2x SlimSAS SFF-8654 8i cable require bifurcation support?
A1: Yes. The host CPU or motherboard must support x16 bifurcation into 2x x8 (a BIOS setting on most server platforms). No extra switch chip is needed.

Q2: Can each SFF-8654 8i branch run at full PCIe 4.0 speed?
A2: Yes. Each branch carries 8 lanes at 16 GT/s (16 GB/s per direction), provided both host and endpoint are PCIe 4.0 capable.

Q3: What does the VTC-…-K2 part number mean?
A3: VTC is the VITALCONN prefix and K2 the platform suffix. Quote VTC-APEBEOP30001-K2 when requesting samples, drawings, or OEM pricing for this PCIe X16 to 2x SlimSAS SFF-8654 8i cable.

Q4: Are custom lengths and labels available?
A4: Yes. Cables are manufactured to order in custom lengths with optional customer-specific wire marking, connector colors, and packaging.
