MCIO 8X to 2x MCIO 4X Cable (PCIe 5.0) – VTC-AMSEF0010005-K2

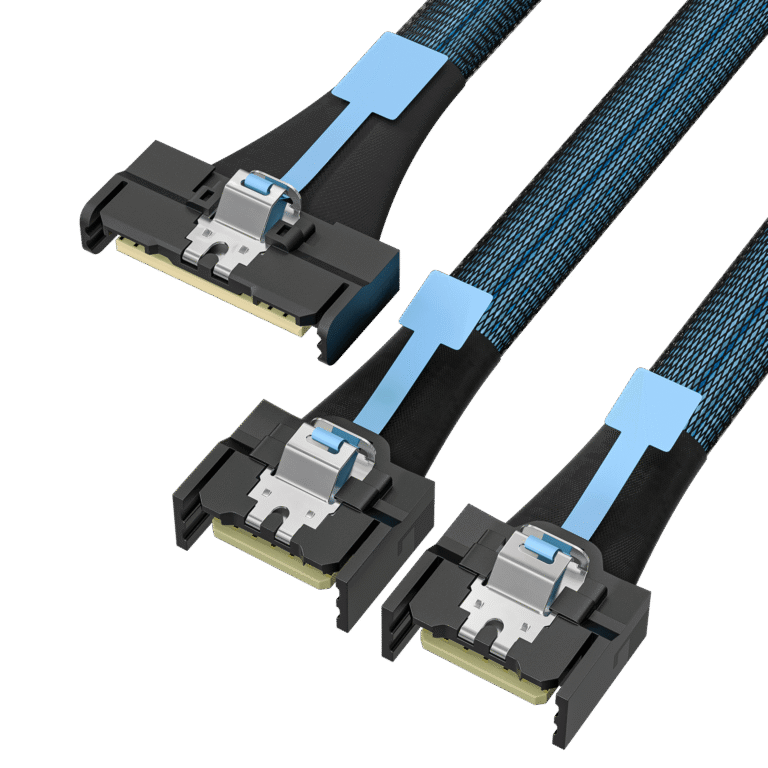

The VITALCONN VTC-AMSEF0010005-K2 MCIO 8X to 2x MCIO 4X cable splits one MCIO 8-lane connector into two MCIO 4-lane outputs for PCIe Gen 5 server configurations. 30 AWG, 85 ohm, OEM custom lengths available.

Product Type	MCIO 8X to 2x MCIO 4X Cable
Protocol	PCIe Gen 5 (32 GT/s per lane); backward compatible Gen 4/Gen 3
Channel Count	x8 input split to 2x x4 outputs
Connector A	1x MCIO 8X (SFF-TA-1016 style)
Connector B	2x MCIO 4X (SFF-TA-1016 style)
Conductor	30 AWG high-frequency copper, twin-axial
Differential Impedance	85 ohm
Cable Length	Standard lengths from stock (OEM custom available)
Applications	Servers, data center storage, HPC, AI/ML platforms, network equipment
Compliance	RoHS 2.0, China RoHS, REACH SVHC

The MCIO 8X to 2x MCIO 4X cable VTC-AMSEF0010005-K2 from فيتالكون is a high-performance splitter cable engineered for PCIe Gen 5 server and data center applications. It takes a single MCIO 8X (8-lane) connector on the host side and splits the signals into two independent MCIO 4X (4-lane) outputs, allowing one motherboard port to drive two downstream devices such as NVMe SSDs, retimer cards, or expansion backplanes. The MCIO 8X to 2x MCIO 4X cable supports data rates up to 32 GT/s per lane, delivering aggregate bandwidth of up to 64 GB/s across both channels.

Constructed with 30 AWG high-frequency twin-axial conductors and an 85 ohm controlled-impedance system, the MCIO 8X to 2x MCIO 4X cable preserves signal integrity at PCIe Gen 5 speeds. The compact MCIO connector form factor, compliant with the SFF-TA-1016 style interface, maximizes front-panel port density in dense server racks. Robust shielding minimizes crosstalk and EMI, ensuring reliable data transmission even in electrically noisy environments. The cable’s durable construction withstands repeated mating cycles, making it suitable for both production deployments and field-serviceable configurations.

VITALCONN offers standard lengths from stock as well as OEM/ODM custom lengths to suit specific rack and chassis routing requirements. The MCIO 8X to 2x MCIO 4X cable is fully compatible with PCIe Gen 5 and is backward-compatible with PCIe Gen 4 and Gen 3 MCIO interfaces. Review the latest PCI Express specifications at PCI-SIG, and explore the full High Speed Cable product line at VITALCONN for all your server interconnect needs.

MCIO 8X to 2x MCIO 4X Cable Specifications

Part Number: VTC-AMSEF0010005-K2
Supplier PN: AMSEF0010005
Connector A: 1x MCIO 8X (8-lane, SFF-TA-1016 style)
Connector B: 2x MCIO 4X (4-lane, SFF-TA-1016 style)
Conductor: 30 AWG high-frequency copper, twin-axial
Differential Impedance: 85 ohm
Protocol: PCIe Gen 5 (32 GT/s per lane); backward compatible Gen 4/Gen 3
Bandwidth: Up to 64 GB/s aggregate (both MCIO 4X outputs)
التدريع: Full EMI shielding with drain wire
Cable Length: Standard lengths from stock; OEM/ODM custom available
Operating Temperature: -10 to +70 degC
Compliance: RoHS 2.0, China RoHS, REACH SVHC

Key Features of the MCIO 8X to 2x MCIO 4X Cable

PCIe Gen 5 Ready: Supports 32 GT/s per lane for next-generation server bandwidth demands.
1-to-2 Splitter Design: One MCIO 8X input splits to two MCIO 4X outputs, maximizing port utilization on server motherboards.
85 Ohm Controlled Impedance: Precision-matched impedance ensures clean signal edges at high data rates.
30 AWG Twin-Axial Conductors: Fine-gauge copper conductors balance flexibility and signal performance in tight rack spaces.
Compact MCIO Form Factor: SFF-TA-1016 style connectors enable higher port density than legacy PCIe slot connectors.
Full EMI Shielding: Shielded pairs with drain wire suppress crosstalk and electromagnetic interference.
Durable Construction: Engineered for repeated mating cycles in production and field-service environments.
OEM/ODM Customization: Custom cable lengths, labels, and packaging available upon request.

Packing Details

Standard Packaging: Individual anti-static bag per cable.
Bulk Packaging: Carton quantity configurable per customer requirement.
Labeling: Each cable labeled with VTC-AMSEF0010005-K2 part number and supplier PN AMSEF0010005.
Lead Time: Standard lengths ship within 3-5 business days; OEM custom within 2-3 weeks.
MOQ: Flexible; samples available for qualification.

MCIO 8X to 2x MCIO 4X Cable Applications

Server Backplanes: Split a single MCIO 8X port on a server motherboard to connect two NVMe SSD backplanes or expansion cards.
Data Center Storage: Connect storage arrays to controllers in high-density data center racks, routing two 4-lane devices from one host port.
High-Performance Computing (HPC): Enable high-throughput data paths between compute nodes and storage in HPC clusters.
AI/ML Servers: Route PCIe Gen 5 lanes from GPUs or accelerators to NVMe storage in AI training platforms.
Network Equipment: Provide flexible channel splitting in network switches and routers using MCIO interconnects.

Frequently Asked Questions

What PCIe generation does the MCIO 8X to 2x MCIO 4X cable support?

The MCIO 8X to 2x MCIO 4X cable is designed for PCIe Gen 5 at 32 GT/s per lane and is fully backward compatible with PCIe Gen 4 (16 GT/s) and Gen 3 (8 GT/s) MCIO interfaces, ensuring flexibility across server generations.

How does the 1-to-2 splitter work electrically?

The MCIO 8X connector carries 8 differential lanes. This cable routes 4 lanes to each MCIO 4X output, creating two independent x4 PCIe links from a single x8 host port. No active components are required; the split is purely passive.

Can I order custom cable lengths for my server chassis?

Yes. VITALCONN offers OEM/ODM custom lengths tailored to your rack and chassis routing. Contact us with your required length and quantity for a quote.

What impedance and wire gauge does this cable use?

The MCIO 8X to 2x MCIO 4X cable uses 30 AWG twin-axial conductors with 85 ohm controlled differential impedance, matching the MCIO and PCIe Gen 5 signal-integrity requirements.
