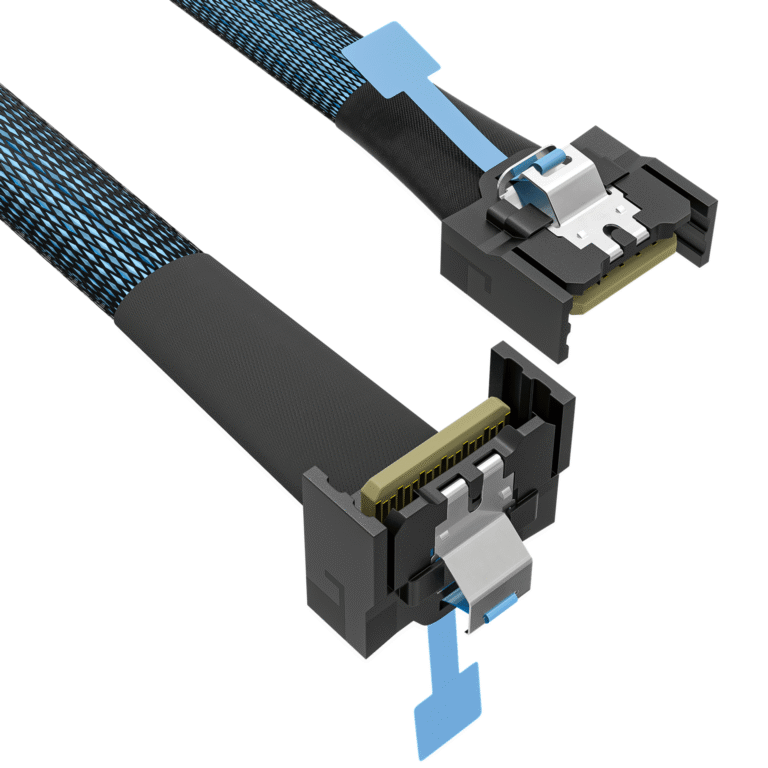

MCIO 4X to MCIO 4X 90 Degree Cable (PCIe Gen5) – VTC-AMSFF0110001-K2
The VITALCONN VTC-AMSFF0110001-K2 is an MCIO 4X to MCIO 4X 90 degree cable: a straight connector on one end and a right-angle connector on the other for low-clearance routing. Supports PCIe Gen5 at 32 GT/s with 30 AWG conductors and 85 ohm controlled impedance. OEM custom lengths available.
| Product Type | MCIO 4X to MCIO 4X 90 Degree Cable |
|---|---|
| Protocol | PCIe Gen5 (32 GT/s per lane) |
| Channel Count | x4 (4 lanes) |
| Connector A | 1x MCIO 4X straight |
| Connector B | 1x MCIO 4X 90° right-angle |
| Conductor | 30 AWG high-frequency copper, twin-axial |
| Differential Impedance | 85±5Ω |
| Shielding | Per-pair foil + overall braid |
| Cable Length | 0.5 m / 0.8 m / 1.0 m (OEM custom) |
| Applications | Enterprise storage, data center, workstation, compact systems |
| Compliance | RoHS 2.0, China RoHS, REACH SVHC |
The MCIO 4X to MCIO 4X 90 degree cable VTC-AMSFF0110001-K2 from فيتالكون solves the tightest cable-routing problems in modern servers and workstations. One end carries a straight (vertical-exit) MCIO 4X connector for the motherboard or controller header; the other end uses a 90-degree right-angle MCIO 4X connector that turns the cable parallel to the PCB immediately after mating. This geometry keeps the harness below the height of add-in cards and heatsinks, enabling clean airflow and unobstructed service access in 1U chassis, GPU-dense AI servers, and compact workstations.
Electrically, the MCIO 4X to MCIO 4X 90 degree cable is a full PCIe Gen5 interconnect: 32 GT/s per lane across 4 lanes, with 30 AWG high-frequency copper twin-axial conductors and differential impedance held at 85 ± 5 Ω through the right-angle transition. The bent connector is tuned so the impedance discontinuity at the elbow stays inside Gen5 eye-mask budgets — the cable trains reliably at Gen5 speeds over standard in-chassis lengths.
Standard lengths of 0.5 m, 0.8 m, and 1.0 m ship from stock; OEM custom lengths and labeling are built to order. It belongs to the VITALCONN High Speed Cable family alongside straight, OCuLink, SlimSAS, and PCIe variants.
MCIO 4X to MCIO 4X 90 Degree Cable Specifications
- Part Number: VTC-AMSFF0110001-K2
- Product Type: MCIO 4X to MCIO 4X 90 Degree Cable (straight to right-angle)
- Connectors: 1x MCIO 4X straight + 1x MCIO 4X 90° right-angle (SFF-TA-1016 style)
- Channel Count: 4 lanes (x4)
- Protocol Support: PCIe Gen5 (32 GT/s per lane)
- Conductor: 30 AWG high-frequency copper, twin-axial
- Differential Impedance: 85 ± 5 Ω
- التدريع: per-pair foil + overall braid
- Cable Length: 0.5 m / 0.8 m / 1.0 m (OEM custom available)
- Connector Orientation: straight to 90° right-angle
- Compliance: RoHS 2.0, China RoHS, REACH SVHC
Key Features
- Right-angle routing: the 90° connector exits parallel to the board, enabling cable management in confined spaces and around GPUs, heatsinks, and drive cages.
- PCIe Gen5 performance: 32 GT/s per lane over 4 lanes supplies high bandwidth and low latency for data-intensive applications.
- Impedance continuity at the bend: tuned right-angle transition keeps the MCIO 4X to MCIO 4X 90 degree cable inside Gen5 signal-integrity budgets.
- High-density connectors: compact MCIO form factor per the SFF Committee SFF-TA-1016 style interface saves board area in dense designs.
- Durable construction: rugged shells and shielded twin-axial cable meet the demands of high-performance environments.
- Flexible system design: mix with straight-to-straight variants to optimize the harness for each chassis position.
- Custom lengths: OEM lengths built to order eliminate slack and tidy interior airflow.
- Future-proof: supports current Gen5 platforms and remains suitable for Gen4/Gen3 links during fleet transitions.
Packing Details
- Individual anti-static bag per cable
- Inner carton with foam cushioning, 20 pcs per inner carton
- Export-grade outer carton, 4 inner cartons per master
- Each label carries part number VTC-AMSFF0110001-K2, quantity, and RoHS marking
- OEM / ODM packaging and labeling available on request
MCIO 4X to MCIO 4X 90 Degree Cable Applications
- Enterprise storage: attach NVMe storage servers and arrays where vertical clearance above the connector is blocked by drives or trays.
- Data centers: high-speed links between servers and storage devices keep rack wiring serviceable and airflow clean.
- Gaming rigs and workstations: PCIe Gen5 connections to graphics cards and peripherals in premium builds with glass panels and tight tolerances.
- Compact industrial computing: route Gen5 links in sealed or half-height enclosures without stressing the connector.
- AI inference appliances: right-angle exits keep accelerator harnesses below heatsink stacks.
Frequently Asked Questions
Q1: Does the right-angle connector affect signal integrity at Gen5 speeds?
A1: No. The 90° transition is impedance-tuned so the MCIO 4X to MCIO 4X 90 degree cable still meets PCIe Gen5 eye-mask requirements over standard in-chassis lengths.
Q2: How is this different from the straight-to-straight version?
A2: The straight version (VTC-AMSFF0010004-K2) exits vertically at both ends; this version turns the cable immediately at one end for low-clearance routing.
Q3: What does the VTC-…-K2 part number mean?
A3: VTC is the VITALCONN prefix and K2 the platform suffix. Quote VTC-AMSFF0110001-K2 for samples, drawings, and OEM pricing.
Q4: Can both ends be right-angle?
A4: Yes, as an OEM option. Contact VITALCONN with your connector-orientation map and we will configure the build accordingly.
