SFP 2X1 Cage Connector S1N3A23000CA4(Cross out TE Connectivity 1658391-2)

Product Overview

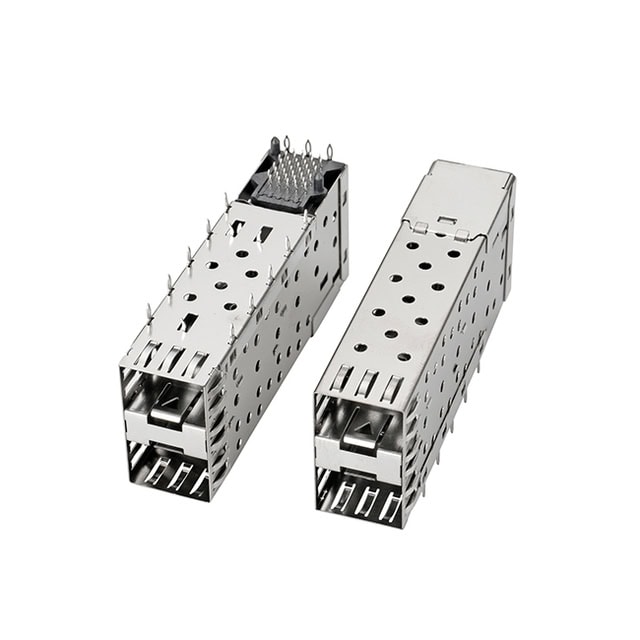

The S1N3A23000CA4 provides a dual-port stacked configuration, allowing for two SFP modules to be utilized in the space of a single-width connector. The design includes integrated signal contacts and a shielded cage assembly to maintain signal integrity and manage electromagnetic interference (EMI).

Product Specifications

• Cage Material: Copper alloy, nickel-plated, 0.25 mm thickness.
• Connector Housing: High-temperature LCP, UL94 V-0 rated.
• Contact Material: Phosphor bronze, 0.20 mm thickness.
• Plating: 30μ” minimum gold in the mating area and 150μ” minimum matte tin on solder tails.
• Spring Material: Stainless steel, 0.20 mm thickness.
• Operating Temperature: -40°C to +85°C.
• Storage Temperature: -55°C to +105°C.

Product Features

• Stacked 2X1 Design: Maximizes port density on the PCB.
• RoHS Compliant: Meets environmental standards for hazardous substances.
• High-Quality Plating: Gold-plated contacts ensure excellent electrical performance and corrosion resistance.
• Thermal Stability: Designed to operate across a wide temperature range for industrial use.

Applications

While not explicitly listed in the technical drawings, this type of SFP connector is typically used in:

• Networking switches and routers.
• Data center servers.
• Telecommunications equipment.
• High-speed storage systems.

Packing Details

• Packaging Type: Tray packaging.
• Quantity per Tray: 20 pieces.
• Quantity per Box: 140 pieces (7 trays per box).
• Box Dimensions: 340 mm x 265 mm x 200 mm.
