RJ45 and USB Shielded Combo Connector VTC-1800-007-00-B40（Cross out TE 1775855)

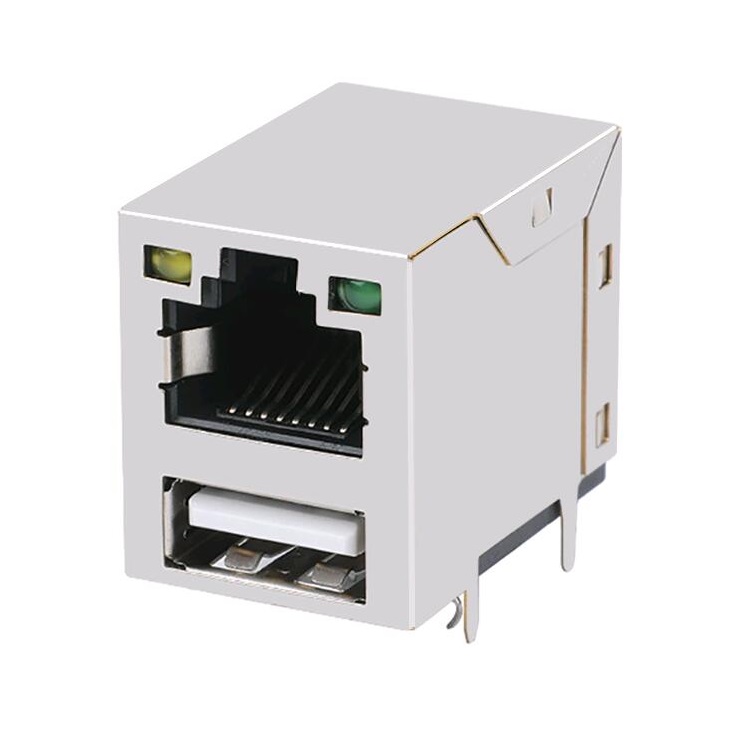

This is a shielded combo connector integrating an RJ45 modular jack and a USB port into a single unit. It is designed for through-hole mounting and features black housings, selective gold plating on contacts, and integrated LEDs.

VTC-1800-007-00-B40(A0)

Product Overview

The VTC-1800-007-00-B40 is a combo receptacle that combines both RJ45 and USB Type-A connectivity in a shielded, space-saving design. It includes electrical filtering components and status LEDs, suitable for applications requiring both Ethernet and USB connections in one device.

Product Specifications

Part Number: VTC-1800-007-00-B40
Rated Current: 1.5A
Withstanding Voltage: 1000 VAC for 1 minute
Insulation Resistance: 500 MΩ min
Contact Resistance: 50 mΩ max
Housing Material: PBT, UL94V-0 (black)
Contact Material: Phosphor bronze, selective gold plating; solder area gold/tin
Shell Material: Front shell SUS (nickel plated), rear shell SUS
Terminal Thickness: 0.35mm (RJ), 0.25mm (USB)
LED: Yes (color options available per table)
Shielding: Yes (shielded)
Tolerance: ±0.075 mm to ±0.25 mm
RoHS Compliant: Yes

Product Features

Combo Design: Combines RJ45 and USB Type-A ports in one shielded connector to save PCB space.
Integrated LED: Built-in status indicator LEDs for link/activity (color options available).
Shielded Construction: Provides EMI/RFI protection for reliable data transmission.
Durable Materials: PBT UL94V-0 housing and phosphor bronze contacts with selective gold plating ensure long life and stable performance.
Through-Hole Mounting: Offers secure mechanical attachment to the PCB.
Compliance: RoHS compliant.

Applications

This connector is ideal for various data communication and consumer devices requiring both Ethernet and USB interfaces, such as:

Routers and switches
Set-top boxes
Industrial PCs
Embedded systems
Networking equipment

Packing Details

Specific packing details for this model are not included in the available documentation. For exact packing quantities and methods, please consult the manufacturer directly.

FAQ

Q1: Does the VTC-1800-007-00-B40 have integrated magnetics for the RJ45 port?
A1: The datasheet does not specify integrated magnetics. It is a basic shielded RJ45 + USB combo connector. For filtered versions, please consult the manufacturer.

Q2: What are the color options for the LED indicators?
A2: According to the technical drawing, LED color options are available. Please refer to the LED color table in the full datasheet or contact the manufacturer for specific color availability.

Q3: What is the PCB mounting type for this connector?
A3: This connector is designed for through-hole (THT) mounting.
