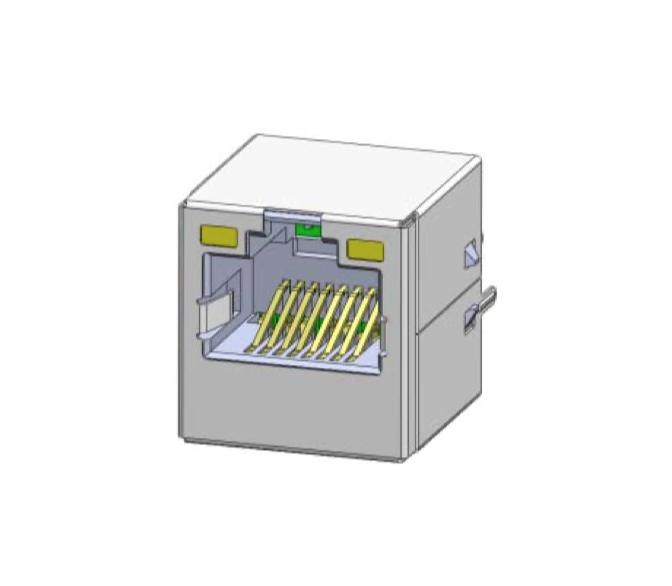

Magnetic Modular Jack RJ45 Vertical, 1X1 Port, Shielded, W/ LEDs, J11VG-902X

◆ Vertical RJ45

◆ 10/100Base-Tx

◆ 100M POE Function Option

◆ Hi-pot：1500VAC，60S；

◆ OCL：350uH Min @100KHz 0.1VRMS With 8mADC

◆ Contact Resistance：30mΩ Max

◆ Operating Lift：750Cycles

◆ Operating Temperature : 0°C TO +75°C

◆ Storage Temperature : -40°C TO +85°C

◆ RoHS Compliant / Halogen Free Option
