VitalConn High Precision Electronic Connector JD112101DPF1(Cross out WÜRTH ELEKTRONIK 615008185221)

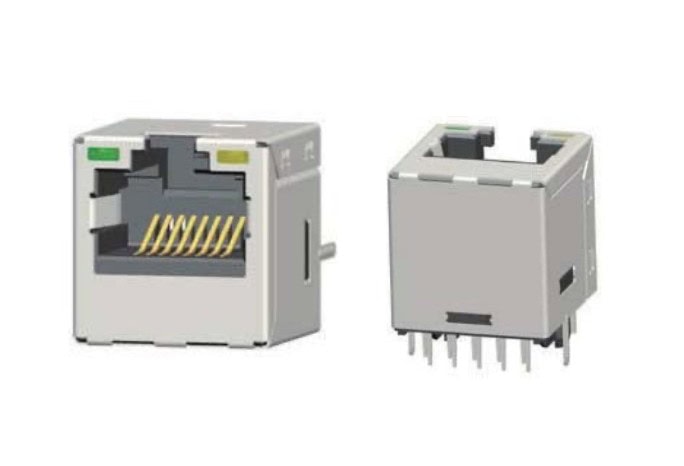

The JD112101DPF1 is a precision-engineered electronic connector manufactured by VitalConn. Designed under the philosophy of “Innovation in Connection,” this component is built to meet strict dimensional standards (Revision AF) to ensure reliable performance in high-density electronic assemblies.

JD112101DPF1

Product Overview

This product serves as a “Vital Connection” component within electronic systems. It is documented with comprehensive mechanical tolerances to ensure compatibility with standardized PCB layouts and housing requirements. The engineering focus is on accuracy and manufacturing consistency, as evidenced by the detailed tolerance specifications provided in the technical documentation.

Product Specifications

Unit of Measurement: Millimeters (mm).
Dimensional Tolerances:
- Generic: ±0.50 mm.
- Decimal (.0): ±0.38 mm.
- Fine Decimal (.00): ±0.25 mm.
- High Precision (.000): ±0.10 mm.
Angular Tolerance: ±3.0°.
Current Revision: AF.

Product Features

High Mechanical Accuracy: Features tight tolerances down to ±0.10 mm for critical dimensions.
Standardized Metric Design: All dimensions are provided in millimeters for global compatibility.
Verified Quality: Subject to “Manufacturing Copy” controls and internal approval processes by engineering teams.

Applications

(Note: While not explicitly listed in the source, VitalConn “JD” series typically applies to the following):

Networking equipment (Routers, Switches).
Telecommunications infrastructure.
Industrial automation control systems.
Embedded computing platforms.

Packing Details

(Note: Not specified in the source; information reflects standard industry packaging):

Typically supplied in protective trays or tape-and-reel formats to prevent pin deformation during transit.
Standard export cartons with moisture-resistant barriers.

FAQ

Q1. How can I obtain technical support for the JD112101DPF1?

A1. You can receive technical assistance by emailing the VitalConn support team at support@vitalconn.com.

Q2. What is the standard measurement unit used for this connector’s dimensions?

A2. All technical specifications and measurements for this product are provided in millimeters (mm).

Q3. What is the tolerance for a dimension specified to two decimal places (e.g., 10.00mm)?

A3. According to the technical drawing, dimensions with two decimal places have a tolerance of ±0.25 mm.
