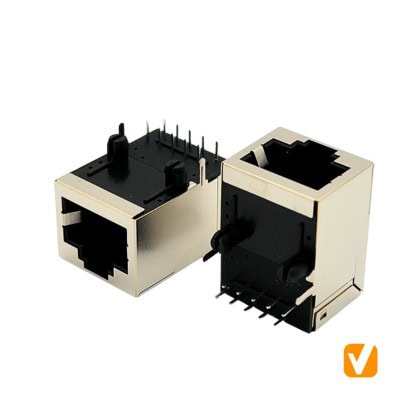

Magnetic Modular Jack RJ45 Tab Up, 1X1 Port, Shielded, W/OLEDs, 1000 Base-T J11EG2001NPF1T

Specifications:

• MATERIAL:
  • HOUSING HIGH TEMPERATURE PT UL94V-0 BLACK
  • CONTACTS: T=0.35MM, PHOSPHOR BRONZE, NICKEL 50u”MIN UNDERPLATE ON ALL AREA, TIN 80u’MIN ON TERMINATION END, GOLD FLASH ON CONTACT AREA.
  • SHIELD: T=0.20mm,NICKEL 30u” MIN PLATINC
• OPERATING TEMPERATURE: -40°C~85°C
• STARAGE TEMPERATURE : -40°C~85°C
• CAVITY CONFORMS TO FCC RULES AND REGULATIONS PART 68,SUBPART F.
