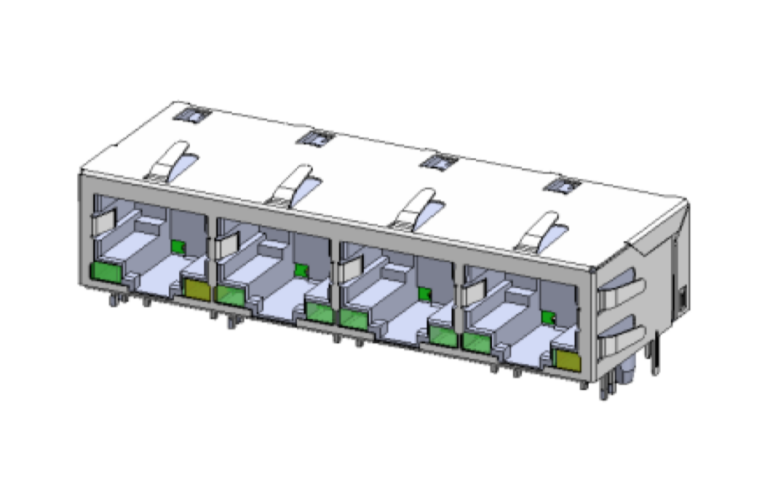

Magnetic Modular Jack RJ45 1*4 Port, Tab Down, Shielded, W/ LEDs, W/EMI J14GG-941X

◆ RJ45 1X4 Tab Down

◆ 10/100/1000Base-Tx

◆ LED Option

◆ 100M POE Function Option

◆ Surge Protection Option

◆ Shell Spring Option

◆ Hi-pot：1500VAC，60S；

◆ OCL：350uH Min @100KHz 0.1VRMS With 8mADC

◆ Contact Resistance：30mΩ Max

◆ Operating Lift：750Cycles

◆ Operating Temperature : 0°C TO +75°C or -40°C TO +85°C Option

◆ Storage Temperature : -40°C TO +85°C

◆ RoHS Compliant / Halogen Free Option
