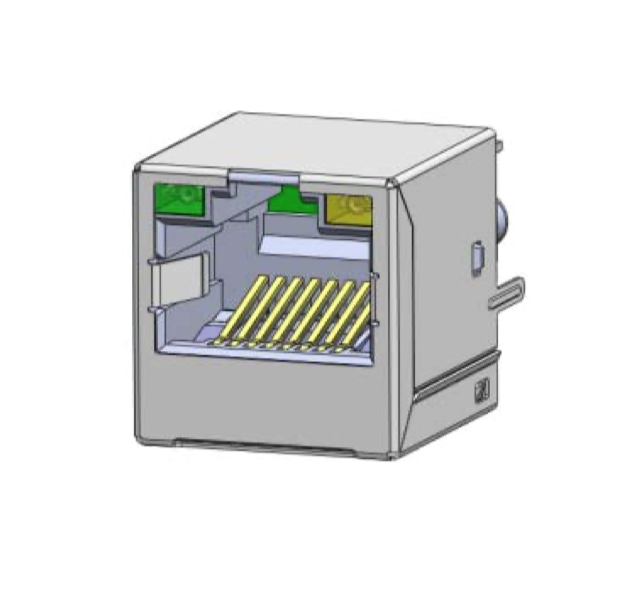

Magnetic Modular Jack RJ45 Vertical, 1X1 Port, Shielded, W/ LEDs, J11VG-950X
◆ Vertical RJ45
◆ With Shell
◆ 10/100Base-Tx
◆ 100M POE Function Option
◆ Hi-pot：1500VAC，60S；
◆ OCL：350uH Min @100KHz 0.1VRMS With 8mADC
◆ Contact Resistance：30mΩ Max
◆ Operating Lift：750Cycles
◆ Operating Temperature : 0°C TO +75°C
◆ Storage Temperature : -40°C TO +85°C
◆ RoHS Compliant / Halogen Free Option
| Application LAN | PoE |
|---|---|
| Latch | Tab Up |
| LED | With LED |
| Mounting Type | |
| Number of Ports | 1*1 |
| Orientation | 180° Vertical |
| Shielding | Shielded |
| Speed | 10 Base-T, 100 Base-T |
*Please note that above specification is subject to change without notice, if you want to get the latest PDF files of the spec or the specific part number. please send an email to sales@vitalconn.com. Our sales expert will get back to you within 24 hours.
