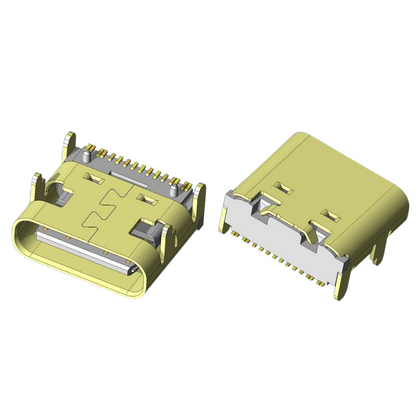

USB Type C Female 16 Pin Mid Mount 1.63mm Center Height with Post UC22-1E1H1A103-0HR-16

The UC22-1E1H1A103-0HR-16 is a durable 16-pin USB Type-C female receptacle featuring a 7.35mm body length and a 1.63mm center height. This connector is designed for mid-mount PCB installation and includes locating posts to ensure precise alignment and mechanical stability during assembly. Built with a stainless steel shell and high-temperature resistant plastic, it is engineered to maintain high performance over 10,000 mating cycles.

Number of Pins	16
Shell Mounting Type	DIP
Terminal Mounting Type	SMT
Terminal Rows	Single
USB Type C Type	Female Receptacle

06-UC22-1E1H1A103-0HR-16

Product Overview

This USB-C connector provides a space-efficient solution for slim electronic devices by utilizing a mid-mount configuration. Unlike some other models in this series, this variant is rated for a higher voltage of 20V DC/AC, making it suitable for more demanding power delivery applications. It supports USB 2.0 data signals and is capable of handling up to 5A of current, providing a robust interface for both high-speed charging and reliable data transfer.

Product Specifications

Voltage Rating: 20 V DC/AC (RMS max).
Current Rating: 5.0 Amps for VBUS/GND pins; 1.25 Amps for CC pin; 0.25 Amps for all other contacts.
Low Level Contact Resistance (LLCR): 40mΩ Max for VBUS/GND; 10mΩ max change for all pins.
Insulation Resistance: 100MΩ Minimum.
Dielectric Withstand Voltage: 100V AC for 1 minute.
Operating Temperature: -25°C to +85°C.
Mechanical Force: Insertion: 0.5~2.0kgf; Removal: 0.8kgf~2.0kgf.
Durability: 10,000 mating cycles.
Soldering: IR Reflow peak temperature of 260°C for 10 seconds.

Product Features

Integrated Locating Posts: Features bottom-side posts for enhanced PCB positioning and structural integrity.
High Voltage/Power Capability: Rated for 20V and 5A, making it compatible with advanced power delivery standards.
Robust Material Build: Constructed with a SUS304 stainless steel front shell and high-temperature plastic (UL94 V-0).
Premium Plating: Terminals are made of Copper Alloy (C1815) with Gold plating on the functional contact area for superior signal conductivity.
Environmental Compliance: Fully RoHS compliant.

Applications

Given its 1.63mm profile, 20V rating, and stabilized post design, this connector is ideal for:

Slim laptops and tablets requiring a high-voltage charging port.
Professional docking stations and hub peripherals.
High-power portable electronics and power banks.
Industrial handheld devices requiring a secure, post-stabilized PCB mount.

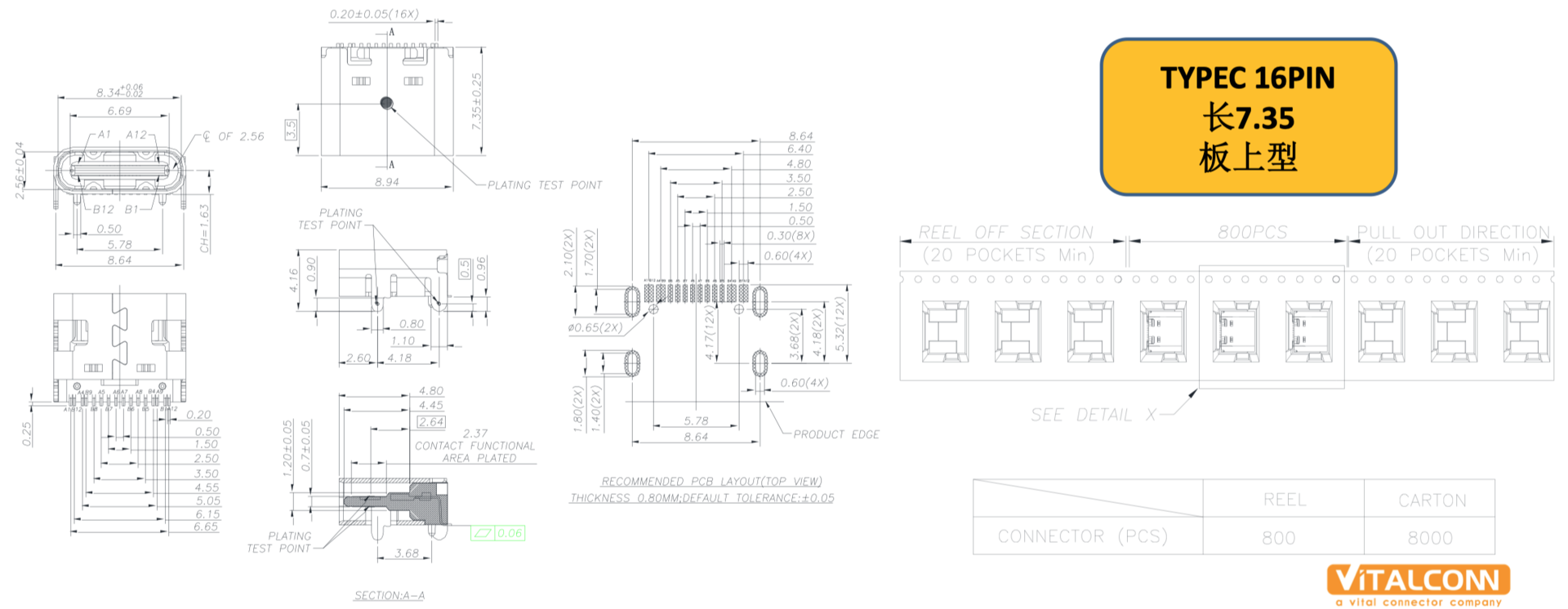

Packing Details

Packaging Type: Reel and Tape.
Quantity per Reel: 800 PCS.
Quantity per Carton: 8,000 PCS (10 reels per carton).
Carton Dimensions: 330mm x 330mm x 320mm.

FAQ

Q1: What is the advantage of the “with post” design for this connector?

A1: The locating posts help guide the connector into the correct position on the PCB during manufacturing and provide additional mechanical support to resist torque when a cable is plugged in.

Q2: How does the voltage rating of this model compare to others in the UC22 series?

A2: This specific model (UC22-1E1H1A103-0HR-16) is rated for 20V, whereas several other mid-mount variants in the series are rated for 5V, allowing this version to be used in higher voltage power delivery applications.

Q3: Is the housing material suitable for lead-free soldering?

A3: Yes, the housing is made of high-temperature resistant plastic and is designed to withstand IR reflow temperatures of up to 260°C.
