SD 7.0 Connector Outstanding H2.90 SMT Push-Push Type CT125129011E7

Product Overview

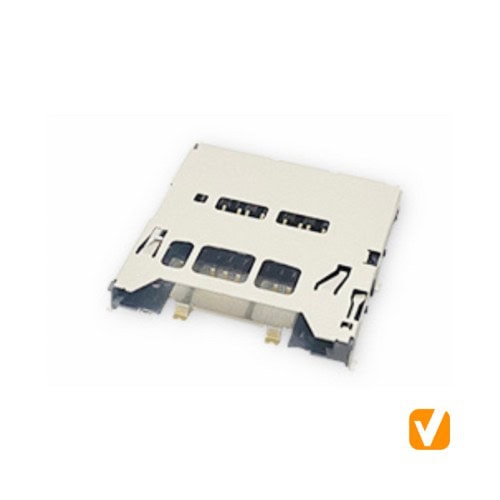

The CT125129011E7 is a precision SD 7.0 card socket with an ultra-slim profile height of 2.90mm. It is constructed with high-quality, heat-resistant LCP plastic and a stainless steel shell to provide superior mechanical protection and durability. The connector utilizes a push-push mechanism for intuitive card insertion and ejection, making it ideal for devices where space and user accessibility are critical.

Product Specifications

• Part Number: CT125129011E7.
• Card Standard: SD 7.0.
• Mounting Height: 2.90mm (H2.90).
• Mechanism: Push-Push.
• Material (Plastic): Heat Resistance LCP, Black, HF, UL94V-0.
• Shell: Stainless Steel with 50µ” min. Solderable Ni plating.
• Contact Current Rating: 0.5 Amperes.
• Insulation Resistance: 1000 Megohms.
• Operating Temperature: -25°C to +85°C.
• Salt Spray Rating: 48 Hours.

Product Features

• Superior Signal Integrity: Contacts are plated with 1µ” min. Gold over Nickel to ensure stable electrical performance and minimize resistance.
• High Precision: The connector maintains a strict contact and solder tail coplanarity of 0.10mm max, facilitating reliable automated soldering.
• Industrial Durability: Designed to withstand standard industrial reflow temperatures and featuring a 48-hour salt spray resistance for longevity.
• Compact Footprint: The low-profile 2.90mm height allows for thinner device designs without sacrificing mechanical strength.

Applications (Note: Based on standard usage for high-speed SD 7.0 connectors.)

• High-End Digital Imaging: 4K/8K video cameras and professional DSLRs.
• Computing: High-speed external storage for laptops and tablets.
• Industrial Electronics: Data logging equipment and industrial automation controllers.
• Automotive: Advanced driver assistance systems (ADAS) and high-capacity infotainment storage.

Packing Details

• Packaging Type: Products are loaded into Carrier Tape and sealed with Self-adhesive Upper Band (Cover Tape) on a Reel.
• Quantity: Each reel contains 520 PCS of product.
• Secondary Protection: Reels are placed in PE Waterproof Bags (8 rolls per bag) containing Desiccant.
• Outer Shipping: The reels are packed into Cartons (8 rolls per carton) with Pearl Cotton (EPE) cushioning and Triangular Boards to prevent impact damage during transit.

FAQs

1. What is the mechanism type for this SD 7.0 socket? It features a Push-Push mechanism, allowing the user to push the card to lock it and push again to eject it.
2. Is this connector suitable for high-temperature manufacturing? Yes, it is made of heat-resistant LCP plastic (UL94V-0), which is designed to withstand standard SMT reflow soldering processes.
3. What level of environmental protection does the shell offer? The stainless steel shell is plated with Nickel and has passed a 48-hour salt spray test, ensuring high resistance to corrosion.
