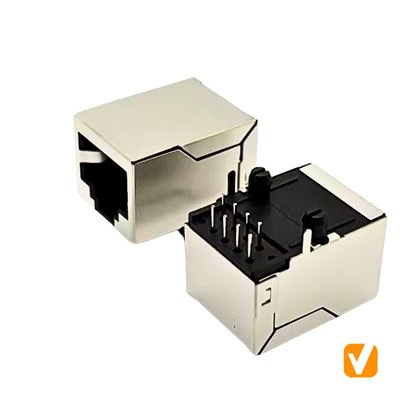

Modular Jack RJ45 1X1 port, Tab Down, Shielded, JD112101NPF1
Material :
- Housing : Thermoplastic UL94V-0, black or gray color .
- Contact :
- Round Contacts :φ0.45mm Fully Gold Copper Alloy
- Stamped Contacts :0.35mm Thick Selective Gold Plated Copper Alloy
- Gold plating options : Gold Flash, 6u”, 15u”, 30u”, 50u”.
- Shield : Nickel Plated Alloy
| Latch | Tab Down |
|---|---|
| LED | Without LED |
| Mounting Type | |
| Number of Ports | 1*1 |
| Orientation | 90° Right Angle |
| Shielding | Shielded |
