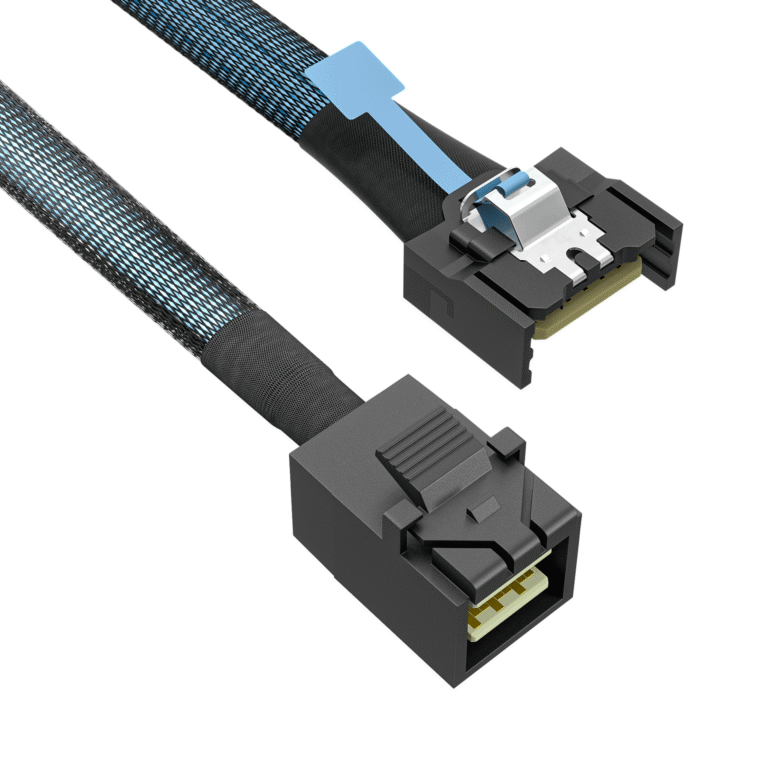

MCIO 4X to Mini SAS HD SFF-8643 Cable (SAS 3.0) – VTC-AMSF30010001-K2
The VITALCONN VTC-AMSF30010001-K2 MCIO 4X to Mini SAS HD SFF-8643 cable bridges MCIO headers to Mini SAS HD storage ports. SAS 3.0 ready with 30 AWG conductors and 85 ohm controlled impedance. Ideal for enterprise storage, servers, and HPC. OEM custom lengths available.
| Product Type | MCIO 4X to Mini SAS HD SFF-8643 Cable |
|---|---|
| Protocol | SAS 3.0 ready; high-speed storage and compute |
| Channel Count | x4 (4 lanes) |
| Connector A | 1x MCIO 4X (SFF-TA-1016 style) |
| Connector B | 1x Mini SAS HD SFF-8643 |
| Conductor | 30 AWG high-frequency copper, twin-axial |
| Differential Impedance | 85 ohm |
| Cable Length | Standard lengths from stock (OEM custom) |
| Applications | Enterprise storage, servers, HPC, data centers |
| Compliance | RoHS 2.0, China RoHS, REACH SVHC |
The MCIO 4X to Mini SAS HD SFF-8643 cable VTC-AMSF30010001-K2 from バイタルコン is a high-performance data cable and connector solution designed for advanced data storage and transfer applications. It joins an MCIO 4-lane header, built to the SFF-TA-1016 style interface common on OCP and AI server boards, to a Mini SAS HD SFF-8643 port used across SAS storage enclosures, RAID controllers, and enterprise backplanes. This MCIO 4X to Mini SAS HD SFF-8643 cable delivers efficient, reliable high-speed data transfer in demanding computing environments.
The MCIO 4X to Mini SAS HD SFF-8643 cable is manufactured with 30 AWG high-frequency twin-axial pairs in an 85 ohm controlled-impedance system, keeping signal integrity intact at SAS 3.0 and PCIe data rates. The Mini SAS HD SFF-8643 connector uses a compact design that optimizes space in high-density installations, and its four independent lanes maximize aggregate bandwidth and transfer efficiency. Durable construction supports frequent plug and unplug cycles for long-term availability, and the design is compatible with multiple protocols to satisfy a wide range of storage and compute requirements.
Standard lengths ship from stock, and VITALCONN supports OEM/ODM customization of length, termination, and packaging. Reference the SFF committee specifications for Mini SAS HD mechanical requirements, and browse the full High Speed Cable collection for MCIO, SlimSAS, OCuLink, and Mini SAS interconnect options.
MCIO 4X to Mini SAS HD SFF-8643 Cable Specifications
- Part Number: VTC-AMSF30010001-K2
- Supplier PN: AMSF30010001
- Product Type: MCIO 4X to Mini SAS HD SFF-8643 Cable
- Connectors: 1x MCIO 4X (SFF-TA-1016 style) + 1x Mini SAS HD SFF-8643
- Channel Count: 4 lanes (x4), each lane independent
- Protocol: SAS 3.0 ready; high-speed storage and compute data rates
- Conductor: 30 AWG high-frequency copper, twin-axial
- Differential Impedance: 85 ohm controlled
- Compliance: RoHS 2.0, China RoHS, REACH SVHC
- Customization: OEM/ODM lengths and terminations available
Key Features of the MCIO 4X to Mini SAS HD SFF-8643 Cable
- Supports high-speed data transfer rates for demanding storage and compute applications.
- Ensures reliable, fast data transfer between connected devices in enterprise systems.
- Mini SAS HD SFF-8643 connector uses a compact design for space-efficient high-density builds.
- Configured as x4 (four lanes), with each lane transferring data independently.
- Maximizes overall bandwidth and transfer efficiency across the cable assembly.
- Durable design supports frequent insertion and extraction cycles for long-term reliability.
- Premium materials and advanced manufacturing preserve signal integrity at high data rates.
- Compatible with multiple protocols, offering flexible connectivity for HPC and storage needs.
Packing Details
- Packaging: Anti-static ESD bag with moisture barrier, individually labeled
- Carton: Export-grade corrugated carton with product and brand markings
- Accessories: Label and RoHS compliance tag included
- Delivery: Standard shipping from our Shunde and Dongguan facilities; global freight available
MCIO 4X to Mini SAS HD SFF-8643 Cable Applications
- Modern servers and storage systems needing high-speed transfer in a compact footprint.
- Enterprise storage solutions where data transfer efficiency drives performance.
- HPC environments requiring high-bandwidth, low-latency connectivity.
- High-density data center deployments where space and reliability are critical.
- Embedded systems in industrial control, medical equipment, and autonomous platforms.
MCIO 4X to Mini SAS HD SFF-8643 Cable FAQ
Q1: Is this MCIO 4X to Mini SAS HD SFF-8643 cable suitable for SAS 3.0 storage?
Yes. The cable is built for high-speed SAS storage interconnects and delivers the signal integrity needed for SAS 3.0 data rates in enterprise enclosures and backplanes.
Q2: What is the channel configuration of the cable?
The cable is configured as x4 (four lanes), with each lane transferring data independently to maximize aggregate bandwidth and transfer efficiency.
Q3: Can VITALCONN supply custom lengths of this cable?
Yes. Standard lengths are available from stock, and OEM/ODM customization of length, termination, and packaging is supported to match your platform.
Q4: What materials are used in this MCIO 4X to Mini SAS HD SFF-8643 cable?
The cable uses 30 AWG high-frequency twin-axial copper conductors in an 85 ohm controlled-impedance construction for reliable high-speed signaling.
