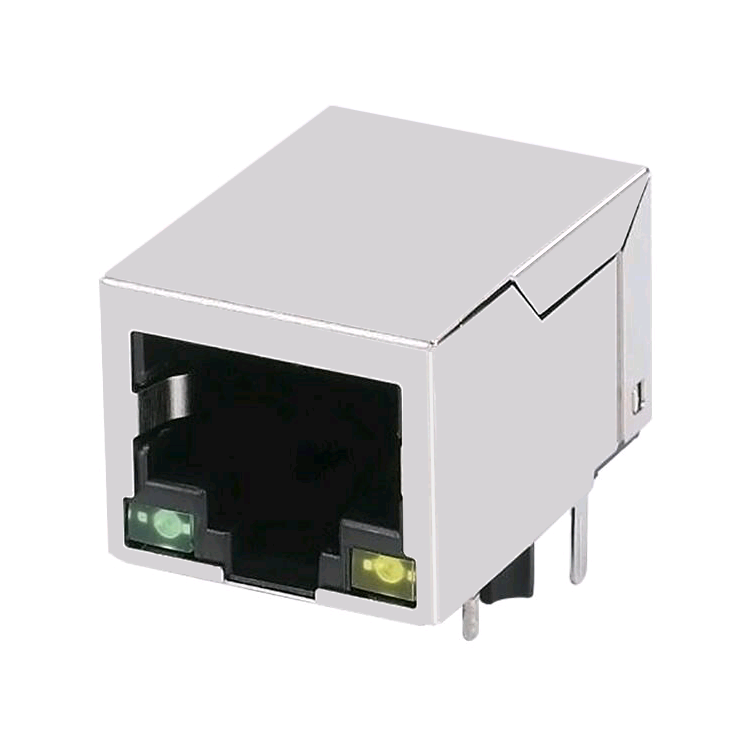

Magnetic Modular Jack RJ45 Tab Down, 1X1 Port, Shielded, W/ LEDs, 10/100 Base-T, J11GH141NPF1 Replacement of J00-0045NL(PULSE)
- MATERIAL:
-
- HOUSING HIGH TEMPERATURE PBT UL94V-0 BLACK
- CONTACTS: T=0.35mm,PHOSPHOR BRONZE, NICKEL 50u”MIN UNDERPLATE ON ALL AREA, TIN 80u”MIN ON TERMINATION END, GOLD FLASH ON CONTACT AREA.
- SHIELD: T=0.20mm, NICKEL 30u”MIN PLATING
- OPERATING TEMPERATURE : 0°C~70°C
- STORAGE TEMPERATURE I -40°C~85°C
- CAVITY CONFORMS TO FCC RULES AND REGULATIONS PART 68,SUBPART F.
| Application LAN | PoE |
|---|---|
| Latch | Tab Down |
| LED | With LED |
| Mounting Type | |
| Number of Ports | 1*1 |
| Orientation | 90° Right Angle |
| Shielding | Shielded |
| Speed | 10 Base-T, 100 Base-T |
| Cross Out | J00-0045NL(PULSE) |
