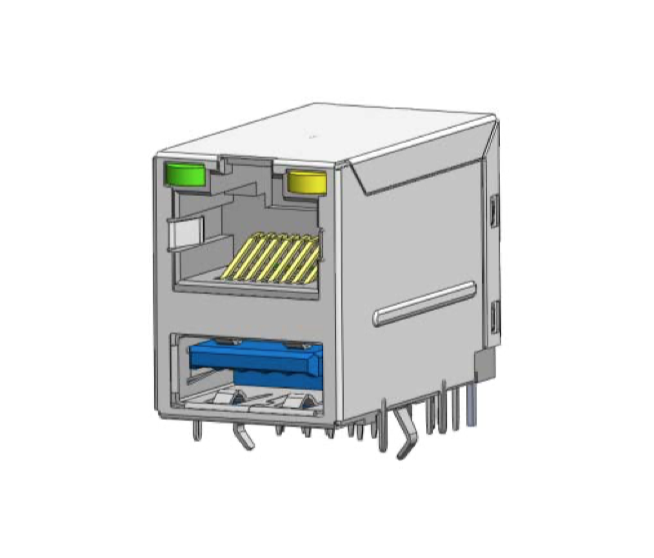

Magnetic Modular Jack RJ45+USB, Shielded, W/LEDs, 1000Mbps 12P8C J11CG45N3NPF1
MATERIAL:
- HOUSING -PBT. UL94V-0 STANDARD COLOR-BLACK
- CONTACTS-0.30mm THICK PHOS-BRONZE PLATED WITH 6u”GOLD IN CONTACT AREA, TIN IN SOLDER AREA, AND UNDERPLATED NICKEL IN ALL AREA.
- SHIELD-STAINLESS, =0.20mm SOLDER TAIL AREA PLATED TIN.
- USB-TERMINAL:COPPER ALLOY,T=0.25MM, GOLD FLASH PLATED IN CONTACT AREA, TIN 100U” MIN PLATED IN SOLDER TAIL
OPERATING TEMPERATURE : 0°C~70°C
| Latch | Tab Up |
|---|---|
| LED | With LED |
| Mounting Type | |
| Number of Ports | RJ45+USB |
| Orientation | 90° Right Angle |
| Shielding | Shielded |
| Speed | 1000 Base-T |
