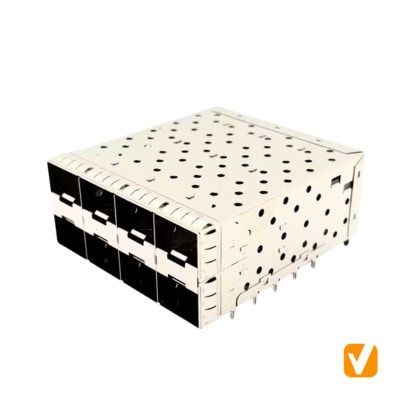

SFP+ Cage Connector 2X4 Ports, W/O Heat Sink, W/O Light Pipe, Press Fit, PN#S2N3D23000CA4

MATERIAL:

• CAGE: COPPER ALLOY 30u” MIN NI-PLATED,THICKNESS 0.25MM
• CONNECTOR: PLASTIC HOUSING: HIGH TEMPERATURE LCP, UL94 V-0
• SPRING: STAINLESS STEEL
• CONTACTS: PHOSPHOR BRONZE
• CONTACT PLATING:
  • 30u” MIN. GOLD ON MATING AREA
  • 150″ MATTE TIN ON SOLDER TAILS
• OPERATING TEMPERATURE: -40°C TO +85°C
• STORAGE TEMPERATURE: -55°C TO +105°C
