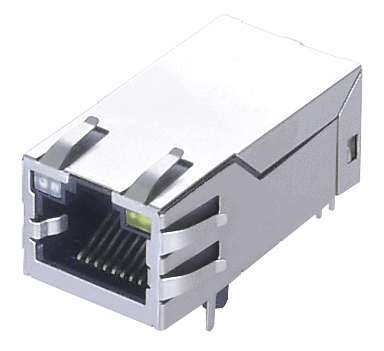

RJ45 Connector with Filter and LED J11GH4A41NPF1(Cross out PULSE J0011D21BNL)

This is an RJ45 connector designed for Ethernet applications, featuring integrated filtering components and status indicator LEDs. It supports data transmission rates up to 100 Mbps.

J11GH4A41NPF1

Product Overview

The J11GH4A41NPF1 is a compact, board-mountable connector compliant with RoHS environmental standards. It includes built-in signal filtering to enhance performance and dual LEDs (typically green and yellow/orange as indicated in other similar products) for link/activity status indication.

Product Specifications

Electrical Performance (Tested at 25±5°C):

Turn Ratio (TR): 1:1 ±3% (at 100kHz, 0.1V)
Inductance (LX): Minimum 350uH (at 100kHz, 100mV, 8mA DC Bias)
DC Resistance (DCR): Maximum 1.2 ohms
High Potential Dielectric Test (HIPOT): 1500V AC for 60 seconds between input and output
Insertion Loss: Maximum -1.0dB from 0.3MHz to 100MHz
Return Loss: Minimum -20dB (1-30MHz), -15dB (30-60MHz), -10dB (60-80MHz)
Cross Talk: Minimum -30dB from 1MHz to 100MHz
Common Mode Rejection: Minimum -30dB from 1MHz to 100MHz
Compliance: RoHS Compliant

Product Features

Integrated filter for improved signal integrity and noise reduction.
Dual LED indicators for network status monitoring.
Compact design suitable for high-density PCB layouts.
RoHS compliant, meeting environmental regulations.

Applications

Suitable for various networking equipment requiring reliable 100 Mbps Ethernet connectivity, such as routers, switches, industrial control systems, and embedded computing devices.

Packing Details

Based on the standard packaging for similar VitalConn products, items are typically placed in trays, which are then packed into cartons. For example, one common configuration is 40 pieces per tray and 10 trays (400 pieces total) per carton box.

FAQ

Q1: What is the maximum data rate supported by the J11GH4A41NPF1 connector?
A1: This connector is designed to support Ethernet data transmission rates up to 100 Mbps (100BASE-TX).

Q2: Does this product meet environmental regulations?
A2: Yes, the J11GH4A41NPF1 is RoHS (Restriction of Hazardous Substances) compliant.

Q3: What do the LED colors indicate on this connector?
A3: While specific color codes may vary, similar VitalConn products use LEDs (e.g., green and yellow) to indicate link status and activity. Please refer to the product datasheet or schematic for the exact pinout and color definition.
