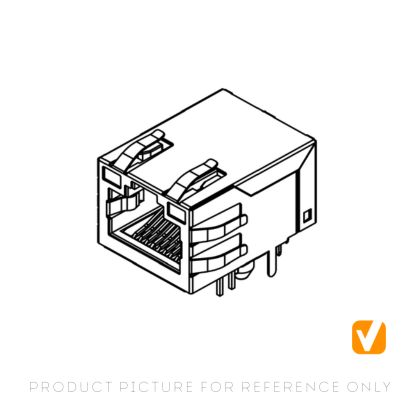

RJ45 Connector Single Port Gigabit With PoE LED J11EG2143DPF1

The VITALCONN J11EG2143DPF1 is a RJ45 connector single port Gigabit PoE with integrated magnetics, LED indicators, and LCP UL94V-0 housing for industrial Ethernet networking applications.

Mounting Type	Through Hole
Number of Ports	1*1
Speed	10 Base-T, 100 Base-T, 1000 Base-T
PoE	PoE+ (30W)
LED	With LED
Shielding	Shielded
Orientation	90 Degree Right Angle
Operating Temperature	-40C to +85C
PoE Support	PoE+ (30W)

RJ45 Connector Single Port Gigabit With PoE LED J11EG2143DPF1 Product Specification

Product Overview

The J11EG2143DPF1 RJ45 connector single port Gigabit PoE from VITALCONN delivers reliable Gigabit Ethernet connectivity in a compact single-port through-hole package. As a high-performance RJ45 connector single port Gigabit PoE, this RJ45 jack provides stable 10/100/1000 Mbps data transmission with integrated status LED indicators for clear link and activity feedback. Its robust design featuring LCP UL94V-0 housing and copper-alloy shielding ensures excellent EMI performance in demanding industrial networking environments. The J11EG2143DPF1 RJ45 connector single port Gigabit PoE is engineered for easy PCB integration with through-hole mounting pins, making it ideal for Ethernet switches, industrial routers, network interface cards, and embedded computing platforms.

Product Specifications

The J11EG2143DPF1 RJ45 connector single port Gigabit PoE conforms to the following specifications:

Parameter	Value
Model Number	J11EG2143DPF1
Connector Type	RJ45 Modular Jack, Single Port (1×1)
Mounting Type	Through-Hole (DIP)
Speed Rating	10/100/1000 Mbps (Gigabit Ethernet)
Number of Positions	10P
Number of Contacts	8C
LED Indicator	Green/Yellow Dual-Color
Housing Material	Thermoplastic LCP, UL94V-0, Black
Contact Material	Phosphor Bronze, Gold-Plated (6µ” min on contact area)
Shield Material	Copper Alloy, Nickel-Plated
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
Durability	750 Mating Cycles Minimum
Mating Force	23N Maximum
RoHS Compliance	Yes

Table: J11EG2143DPF1 RJ45 connector specifications

Key Features of the J11EG2143DPF1

Gigabit Performance: Supports 10/100/1000 Mbps Ethernet with low insertion loss and crosstalk for stable high-speed data transmission.
Integrated LED Indicators: Dual-color (green/yellow) LEDs provide immediate visual feedback of link status and network activity.
Through-Hole Mounting: Robust DIP pins provide strong mechanical attachment to the PCB for vibration-prone industrial environments.
UL94V-0 LCP Housing: High-temperature thermoplastic housing rated UL94V-0 for flame retardancy, suitable for reflow soldering processes.
EMI Shielding: Copper-alloy shield with nickel plating minimizes electromagnetic interference and ensures signal integrity.
Wide Temperature Range: Operating temperature from -40°C to +85°C supports deployment in harsh industrial environments.

Applications

The J11EG2143DPF1 RJ45 connector single port Gigabit PoE is widely used in:

Industrial Ethernet switches and routers
Network interface cards (NIC) and embedded computing
Industrial automation and control systems
IoT gateways and edge computing devices
Telecommunications equipment
Factory automation and SCADA systems
Building automation and security systems
Medical and laboratory networking equipment

Why Choose VITALCONN RJ45 connector single port Gigabit PoE?

VITALCONN is a leading manufacturer of RJ45 connectors with 200+ employees and 5000m² of manufacturing facilities in China. All products including the J11EG2143DPF1 RJ45 connector single port Gigabit PoE are produced under ISO-9000 quality systems with UL certification. With a monthly capacity of 15 million pieces, VITALCONN serves major OEM customers including JABIL, H3C, KAON, and Free. Our RJ45 connector series — including ICM stacked, integrated magnetics, and PoE variants — are exported worldwide for telecom, industrial, and consumer applications. Contact our engineering team for samples, datasheets, and custom configurations.

Compatibility and Standards

The J11EG2143DPF1 RJ45 connector single port Gigabit PoE is designed to comply with the following industry standards:

IEEE 802.3 — Gigabit Ethernet standard
UL94V-0 — Flammability rating for plastic housings
RoHS 2.0 — Restriction of Hazardous Substances directive
REACH — European chemicals regulation compliance

For detailed drawings, recommended PCB layout, and electrical performance curves, refer to the J11EG2143DPF1 datasheet attached below. VITALCONN engineering support is available to help integrate the J11EG2143DPF1 RJ45 connector single port Gigabit PoE into your next-generation networking product.
