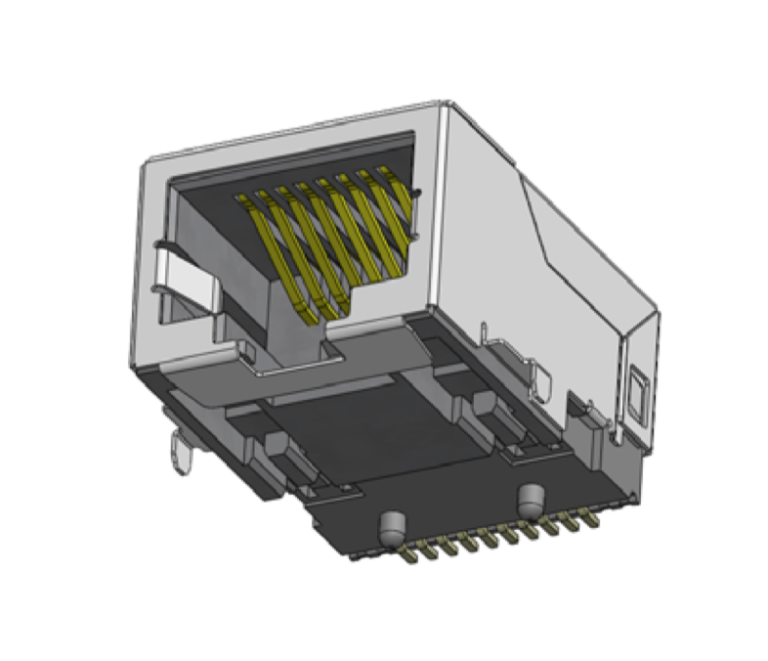

Magnetic Modular Jack RJ45 1*1 Port, Tab Down, 10/100/1000 Base-T, Shielded, Offset, W/O LEDs J11SG-91HX

◆ RJ45 1*1 Tab Down

◆ 10/100/1000 Base-Tx

◆ LED Option

◆ Hi-pot:1500VAC，60S;

◆ OCL:350uH Min @100KHz 0.1VRMS With 8mADC

◆ Contact Resistance:30mΩ Max

◆ Operating Lift:750Cycles

◆ Operating Temperature : 0°C TO +75°C or -40°C TO +85°C Option

◆ Storage Temperature : -40°C TO +85°C

◆ RoHS Compliant / Halogen Free Option
