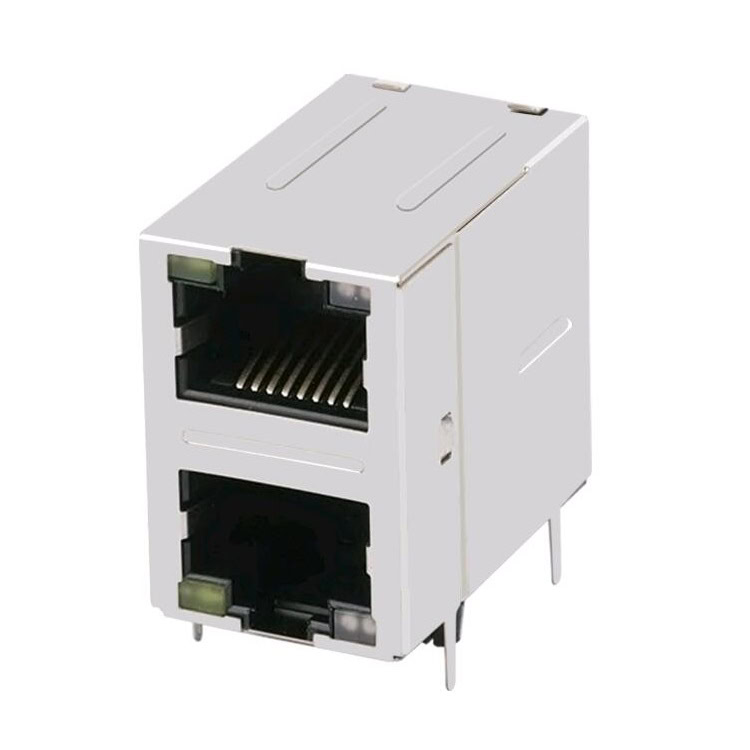

ICM RJ45 100/1000 Base-T 2X1 with LEDs PN#J21UG1143NLB6
VITALCONN ICM RJ45 Part Number:J21UG1143NLB6 is a 2*1 port Magnetic Modular Jack, 1000 Base-T, with LEDs, 6u” gold plated, through hole mounting.
| Application LAN | Non-PoE |
|---|---|
| Latch | Both |
| LED | With LED |
| Mounting Type | |
| Number of Ports | 2*1 |
| Orientation | 90° Right Angle |
| Shielding | Shielded |
| Speed | 1000 Base-T |
SPECIFICATIONS:
- 1. COMPLIES WITH IEEE STANDARDS AND ALL 10/100/1000M ETHERNET SPECIFICATIONS INCLUDING 350UH WITH 8MA DC BIAS
- 2. INTER GRATED MAG-MODULAR DESIGN PROVIDES HIGHER RELIABILITY AND CONSERVES MINIMIZING PCB SPACE
- 3. HOUSING : THERMOPLASTIC LCP UL94 V0 RATED
- 4. RJ45 CONTACT : PHOSPHOR BRONZE C5210,THICKNESS=0.30MM PLATED NICKEL 30U” MIN, 6U”GOLD PLATED ON CONTENT AREA
- 5. INPUT TERMINAL : BRASS, THICKNESS=0.30MM FINISH : 120U”MIN TIN OVER 50U” MIN NICKEL
- 6. METAL SHIELDING : COPPER ALLOY WITH NICKEL PLATED (C2680) THICKNESS=0.20MM NICKEL 30U” MIN
- 7. DIFFERENT COLOR OF LEDS OPTION AVAILABLE
- 8. OPERATING TEMPERATURE : 0 ℃ TO +70 ℃
- 9. STORAGE TEMPERATURE : -40℃ TO +85℃
