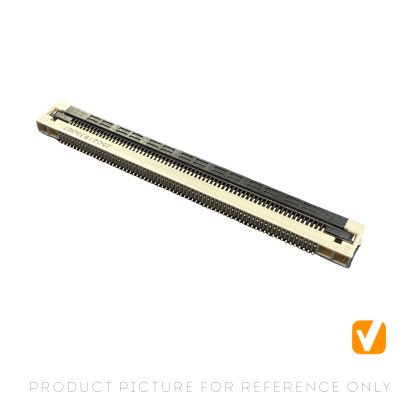

96 Pin ZIF FPC Connector 0.5mm pitch top flip type, bottom contact F05045FA096M1WLJ9

The F05045FA096M1WLJ9 is an ultra-high-density Zero Insertion Force (ZIF) connector designed for Flexible Printed Circuits (FPC). This surface-mount assembly features a standard 0.50mm pitch and a low-profile vertical height of 2.1mm, making it an ideal solution for complex electronic systems that require high-bandwidth data transmission in a compact form factor.

Pitch	0.5mm
Number of Pins	96
Total Height	2.10mm
Body Width	6.0mm

F05045FA096M1WLJ9

Product Overview

This connector belongs to the “Narrow Version” series, which utilizes a space-saving body width of 6.0mm to maximize PCB real estate. It is engineered with a front-flip (actuator) locking mechanism and a bottom-contact interface. To ensure reliable mechanical stability and electrical signal integrity, the assembly includes integrated left and right grounding clips made of copper alloy.

Product Specifications

Pitch: 0.50 mm.
Height: 2.1 mm.
Body Width: 6.0 mm (Narrow Version).
Number of Positions: 96 Pins.
Housing Material: White LCP (Liquid Crystal Polymer).
Actuator Material: Black LCP.
Terminal Material: Phosphor Copper.
Grounding Clips: Copper Alloy with Matte Tin plating.
Contact Area Plating: Gold plating (1u” Min) over a Nickel underplate (50~100u”).
Solder Area Plating: Matte Tin (80~160u”).

Product Features

ZIF Flip-Lock Design: The front-flip actuator allows for zero-force insertion of the FPC, protecting delicate conductive gold fingers from mechanical wear during assembly.
Integrated Shielding: Features grounding clips on both sides to provide a secure grounding path for EMI reduction and to increase the mechanical strength of the solder joints.
High-Density Profile: The 6.0mm narrow width combined with a 96-pin configuration allows for massive data throughput on modern, multi-layered PCBs.
Thermal Reliability: Constructed with high-performance LCP materials, the connector is fully compatible with standard lead-free reflow soldering processes.
Superior Connectivity: Selective gold plating in the contact area ensures low contact resistance and long-term environmental durability.

Applications

Given its ultra-high 96-pin count and space-saving profile, this connector is typically used in:

High-Resolution Displays: Connecting large-scale LCD or OLED panels to main control boards.
Advanced Computing: Internal signal routing for high-performance laptops, tablets, and mobile workstations.
Automotive Systems: Digital instrument clusters, high-definition infotainment screens, and ADAS modules.
Industrial/Medical: Complex diagnostic imaging equipment and high-density monitoring systems.

Packing Details

Packaging Type: Vacuum Packaging.
Protection: The vacuum seal protects the gold-plated terminals and LCP housing from environmental moisture and oxidation during transit and long-term storage.

FAQ (Frequently Asked Questions)

1. What is the contact orientation for the F05045FA096M1WLJ9?

This model is a bottom-contact connector, meaning the conductive gold fingers of the FPC must face downward toward the PCB surface upon insertion.

2. Does this 96-pin connector support grounding for EMI management?

Yes, this model is specifically categorized as “with grounding function” and includes integrated left and right copper alloy clips to provide a grounding path and secure the FPC.

3. What is the benefit of the “Narrow Version” body width for a 96-pin connector?

The 6.0mm narrow width allows engineers to save significant PCB surface area compared to standard wide versions, which is critical when integrating high-density 96-pin interfaces into slim mobile or wearable devices.
