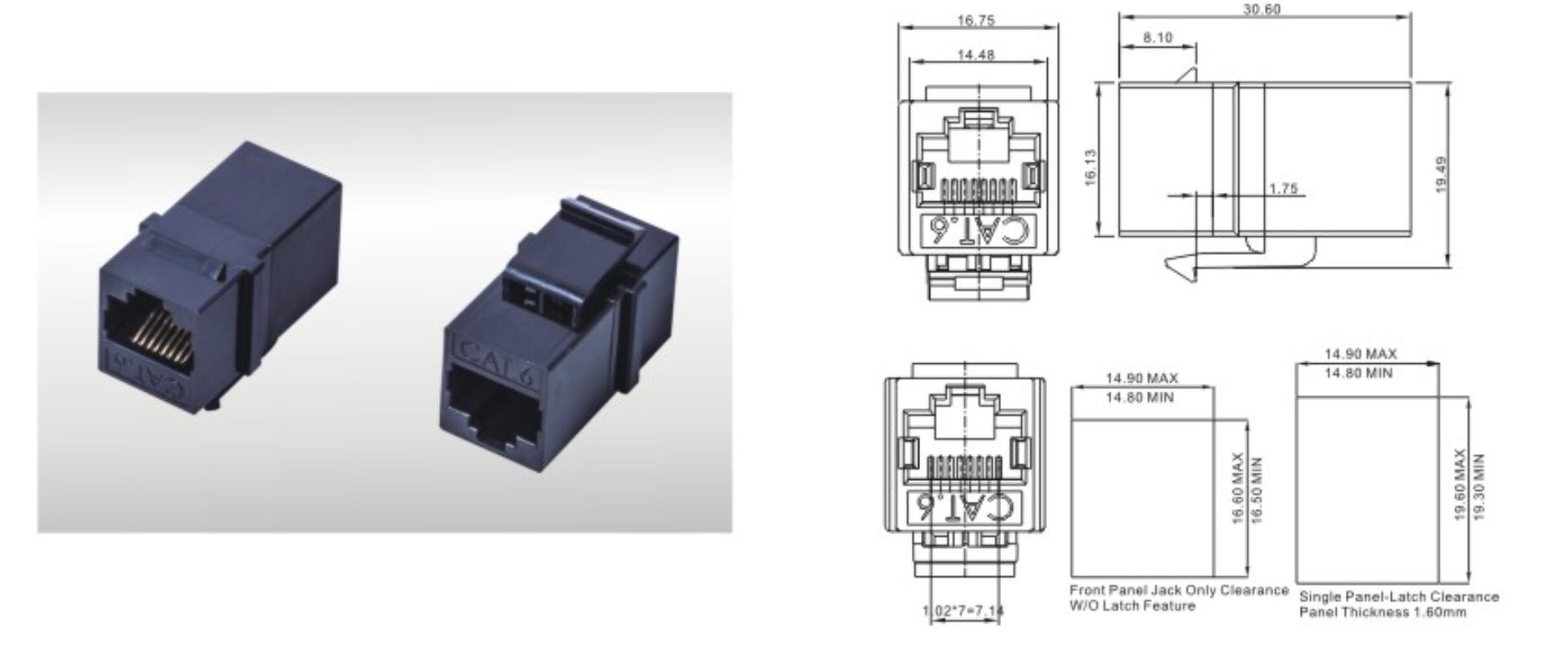

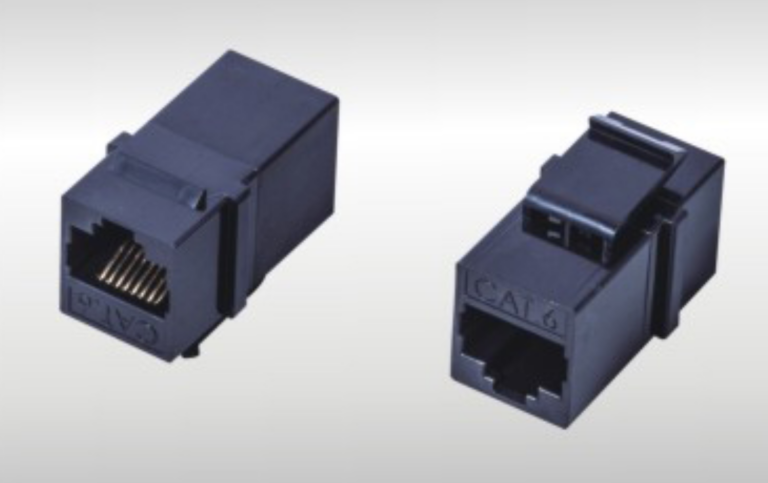

inline Coupler CAT 6 RJ45 Modular Jack Unshielded VTCU8P8CCAT612F3

Product Features:

• Voltage Rating :125 Vac Rms .
• Current Rating :1.5 Amp .
• Contact Resistance :40 Milliohms Max .
• Insulation Resistance :1000 Megohms Min @500 Vdc .
• Dielectric Strength :1000 Vac Rms 60Hz,1Min.
• Operating :750 Cycles Min .
• Storage:-40℃ To +85℃
• Operation:-20℃ To +75℃
• Gold Plating Options: G/F, 6u”, 15u”, 30u”, 50u”
