1000 Mbps RJ45 Connector with LED and Filter JU11201UPB7 Component(Cross out GCT MJ3225-88-0)

Product Overview

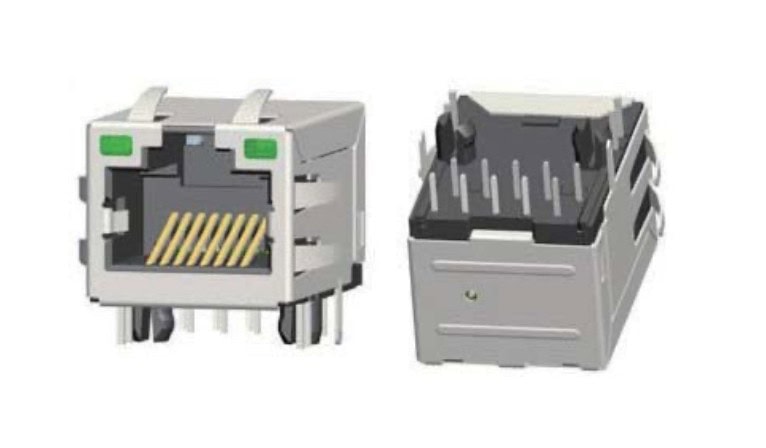

This single port 1X1 RJ45 jack features a ten position and eight contact configuration optimized for high speed connectivity The integrated filter helps manage signal interference while the built in LEDs provide immediate diagnostic feedback for network activity

Product Specifications

• The interface type is a 1X1 modular jack with ten positions and eight contacts
• Maximum data transmission rate reaches one thousand Mbps
• Physical dimensions are calculated using the millimeter unit
• Internal components include integrated LED lamps and a signal filter
• The mechanical angle tolerance is maintained within plus or minus three degrees

Product Features

• Gigabit Ethernet support ensures fast and efficient data transfer
• An integrated filter provides superior signal integrity and noise reduction
• Built in LED indicators allow for easy monitoring of link status
• Precise engineering ensures a secure and reliable fit for PCB assembly

Applications

• High speed network routers and switching equipment
• Data center servers and network interface cards
• Industrial automation systems and controllers
• Telecommunication infrastructure and hardware

Packing Details

Technical documentation for this product is found under drawing number VTC TZ zero zero one six zero The units are packed using standard industrial protocols to protect the integrated electronics during transport For detailed shipping quantities you may contact the manufacturer support team

FAQ

Q1 What is the maximum transmission speed for this connector

A1 It supports high speed Gigabit Ethernet up to one thousand Mbps

Q2 Does this component include internal magnetics

A2 Yes it features an integrated filter to enhance signal stability

Q3 What is the specific port configuration

A3 This model is a single port 1X1 jack with ten positions and eight contacts
