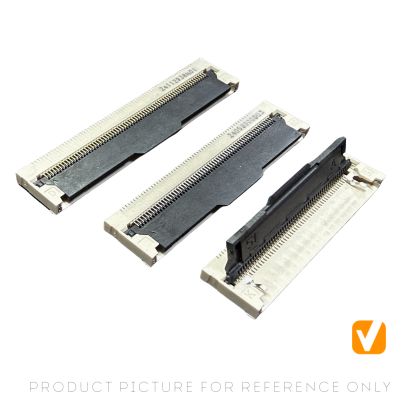

68 Pin ZIF FPC Connector 0.5mm Pitch Height 2.1mm F05053FA068M1WLJ9

The F05053FA068M1WLJ9 is a high-density, 68-pin Zero Insertion Force (ZIF) connector designed for Flexible Printed Circuits (FPC). This surface-mount component features a standard 0.50mm pitch and a low-profile vertical height of 2.1mm, offering a reliable and space-efficient interconnection for advanced electronic systems.

Pitch	0.5mm
Number of Pins	68
Total Height	2.10mm
Body Width	8.0mm

F05053FA068M1WLJ9

Product Overview

This model is categorized as a “Wide Version” within the product line, featuring a robust body width of 8.0mm for superior PCB stability. It utilizes a front-flip (actuator) locking mechanism and a bottom-contact design to ensure secure circuit insertion and retention. The assembly is equipped with integrated left and right grounding clips made of copper alloy to provide both mechanical retention and essential signal grounding.

Product Specifications

Pitch: 0.50 mm.
Height: 2.1 mm.
Width: 8.0 mm (Wide Version).
Number of Positions: 68 Pins.
Housing Material: White LCP (Liquid Crystal Polymer).
Actuator Material: Black LCP.
Terminal Material: Phosphor Copper.
Grounding Clips: Copper Alloy.
Contact Area Plating: Gold plating (1u” Min) over a Nickel underplate (50~100u”).
Solder Area Plating: Matte Tin (80~160u”).

Product Features

ZIF Flip-Lock Design: The front-flip actuator facilitates zero-force insertion of the FPC, protecting delicate conductive “gold fingers” from mechanical wear.
Integrated Grounding: Features grounding clips on both sides to provide a secure electrical path for EMI reduction and to enhance mechanical solder strength.
Wide Version Profile: The 8.0mm width provides a larger footprint, ensuring maximum mechanical stability on the PCB for high-pin count applications.
Thermal Durability: Constructed with high-performance LCP thermoplastic, making the connector fully compatible with standard lead-free reflow soldering processes.
Reliable Connectivity: Selective gold plating in the contact area ensures low contact resistance and long-term environmental durability.

Applications

Given its 68-pin high-density configuration and grounded design, this connector is typically used in:

High-Resolution Displays: Connecting large LCD or OLED panels to main control boards.
Computing Hardware: Internal signal routing for laptops, tablets, and mobile devices.
Automotive Electronics: Digital instrument clusters and infotainment system displays.
Industrial/Medical: High-density monitoring equipment and diagnostic imaging devices.

Packing Details

Packaging Type: Vacuum Packaging.
Function: The vacuum seal protects the gold-plated terminals and LCP housing from moisture and oxidation during transit and storage.

FAQ (Frequently Asked Questions)

1. Does the F05053FA068M1WLJ9 provide EMI shielding?

Yes, it is designed “with grounding function” and includes integrated left and right copper alloy clips to help manage electromagnetic interference and secure the FPC.

2. Which direction should the FPC conductive gold fingers face?

This connector is a bottom-contact design, so the conductive traces of the FPC must face downward toward the PCB surface upon insertion.

3. Is this connector compatible with lead-free reflow soldering?

Yes, the housing and actuator are made of LCP material, which can withstand the high temperatures required for standard reflow soldering processes.
