RJ45 2X6 Shielded Modular Jack with LED J26WD14A6NP02(Cross out PULSE JX0B-5696ZNL-D)

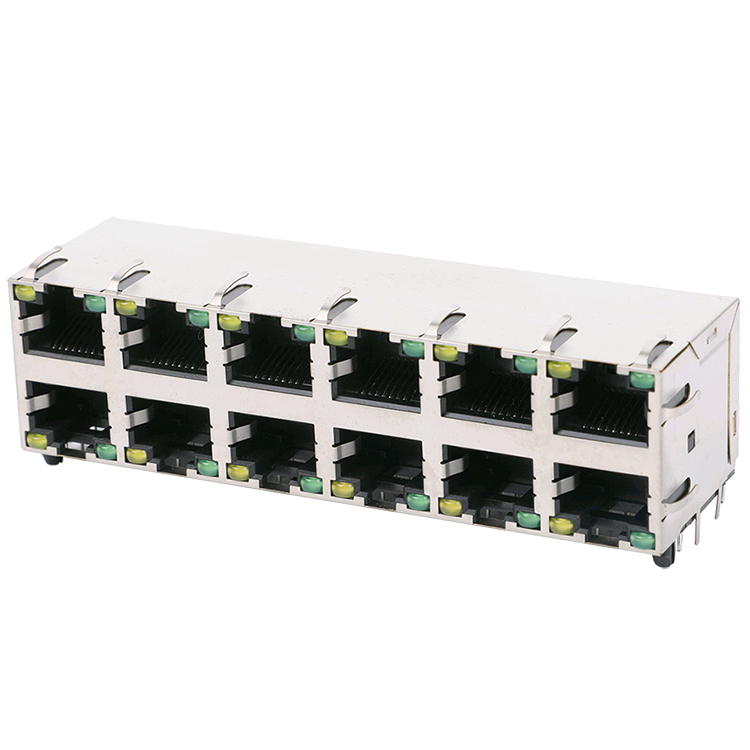

This is a 2×6 port (dual-row, six-column) RJ45 modular jack connector with a shielded housing and integrated status indicator LEDs. It is designed for board mounting in high-density networking equipment.

J26WD14A6NP02

Product Overview

The J26WD14A6NP02 is a compact, multi-port Ethernet connector that integrates 12 individual RJ45 ports into a single footprint to optimize PCB space utilization. It provides EMI protection through its shielded metal shell and visual status monitoring via LEDs for each port.

Product Specifications

Configuration: 2 rows x 6 columns (12 ports total).
Mounting Style: Through-Hole (THT).
التدريع: Yes, with a metal shield.
LED Indicators: Yes, included for status indication.
Port Type: Standard 8P8C RJ45.
Compliance: Expected to be RoHS compliant.

Product Features

High-Density Design: Integrates 12 Ethernet ports to maximize PCB space efficiency.
EMI Protection: Shielded housing helps maintain signal integrity and reduce electromagnetic interference.
Status Monitoring: Built-in LEDs provide immediate visual feedback for link and activity status on each port.
Robust Construction: Designed for reliable performance in demanding networking environments.

Applications

This connector is ideal for networking hardware requiring multiple Ethernet ports in a confined space, such as:

Managed network switches
Enterprise-grade routers and servers
Telecommunication infrastructure equipment
Network distribution units and patch panels

Packing Details

Specific packing details (e.g., tray/carton quantities) for the J26WD14A6NP02 are not available in the provided resources.

FAQ (Frequently Asked Questions)

Q1: How many individual Ethernet ports does this connector provide?
A1: This is a 2×6 configuration, providing two rows of six ports each, for a total of 12 individual RJ45 ports.

Q2: Is this connector shielded against electromagnetic interference?
A2: Yes, based on the product description, it is a shielded connector designed for EMI protection.

Q3: What is the mounting type for this modular jack?
A3: The J26WD14A6NP02 is designed for through-hole (THT) mounting onto a printed circuit board.
