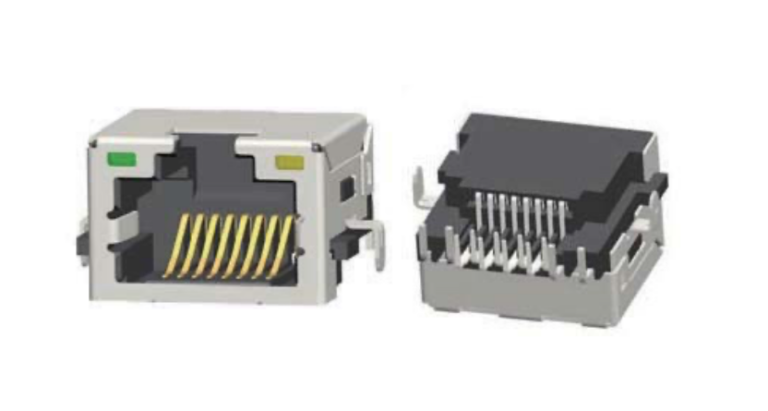

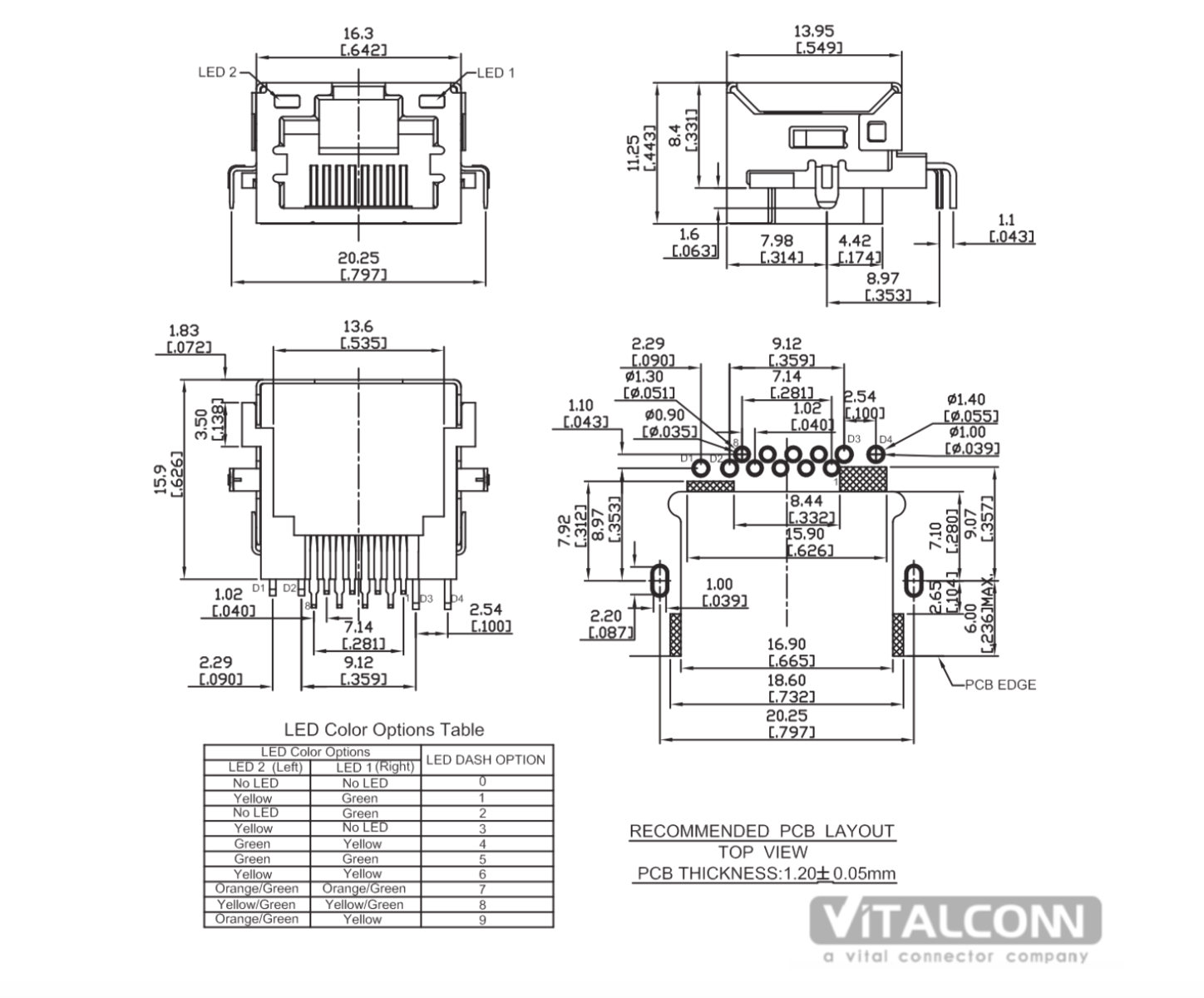

RJ45 Single Port 1*1 - Modular Jack RJ45 1×1 port offset, Tab Up, Shielded, W/LEDs, JU11-8188K7AX
Modular Jack RJ45 1×1 port offset, Tab Up, Shielded, W/LEDs, JU11-8188K7AX
مواد :
- السكن: بلاستيك حراري UL94V-0 ، أسود أو رمادي اللون.
- اتصال :
- جهات الاتصال المستديرة: φ0.45mm سبيكة نحاسية ذهبية بالكامل
- جهات الاتصال المختومة: 0.35 مم سميكة سبائك نحاسية انتقائية مطلية بالذهب
- خيارات طلاء الذهب: Gold Flash ، 6u "، 15u" ، 30u "، 50u".
- الدرع: سبيكة مطلية بالنيكل
| Latch | تبويب |
|---|---|
| LED | مع LED |
| Mounting Type | |
| Number of Ports | 1*1 |
| Orientation | زاوية قائمة 90 درجة |
| Shielding | محمي |

*Please note that above specification is subject to change without notice, if you want to get the latest PDF files of the spec or the specific part number. please send an email to sales@vitalconn.com. Our sales expert will get back to you within 24 hours.
