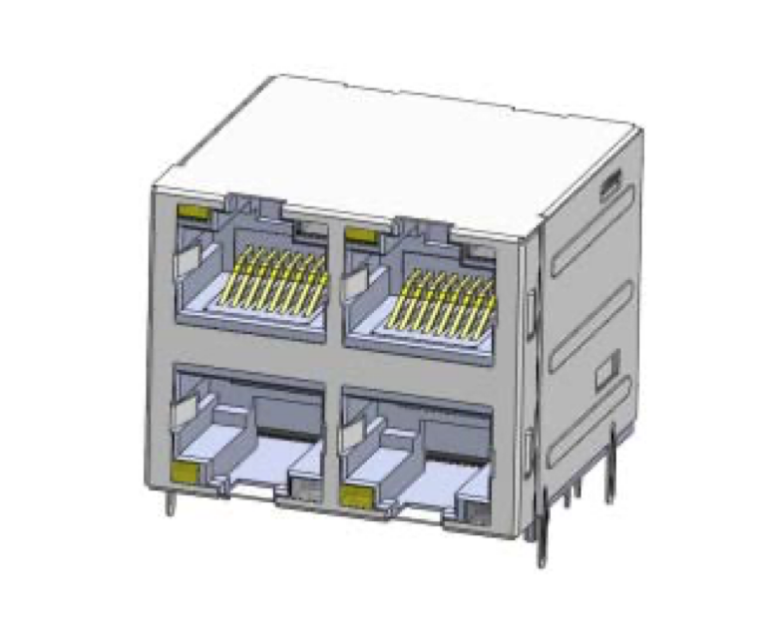

Magnetic Modular Jack RJ45 2*2 Port, Shielded, W/ LEDs, J22UG-929X

◆ RJ45 2*2

◆ 10/100 / 1000Base-TX

◆ خيار LED

◆ خيار وظيفة POE 100M

◆ Surge Protection Option

◆ خيار شل الربيع

◆ Hi-pot:1500VAC，60S;

◆ OCL:350uH Min @100KHz 0.1VRMS With 8mADC

◆ Contact Resistance:30mΩ Max

◆ Operating Lift:750Cycles

◆ Operating Temperature : 0°C TO +75°C or -40°C TO +85°C Option

◆ Storage Temperature : -40°C TO +85°C

◆ متوافق مع RoHS / خيار خالٍ من الهالوجين

Application LAN	PoE
Latch	Both
LED	مع LED
Mounting Type	من خلال ثقب
Number of Ports	2*2
Orientation	زاوية قائمة 90 درجة
Shielding	محمي
Speed	10 Base-T, 100 Base-T, 1000 Base-T

*Please note that above specification is subject to change without notice, if you want to get the latest PDF files of the spec or the specific part number. please send an email to sales@vitalconn.com. Our sales expert will get back to you within 24 hours.
