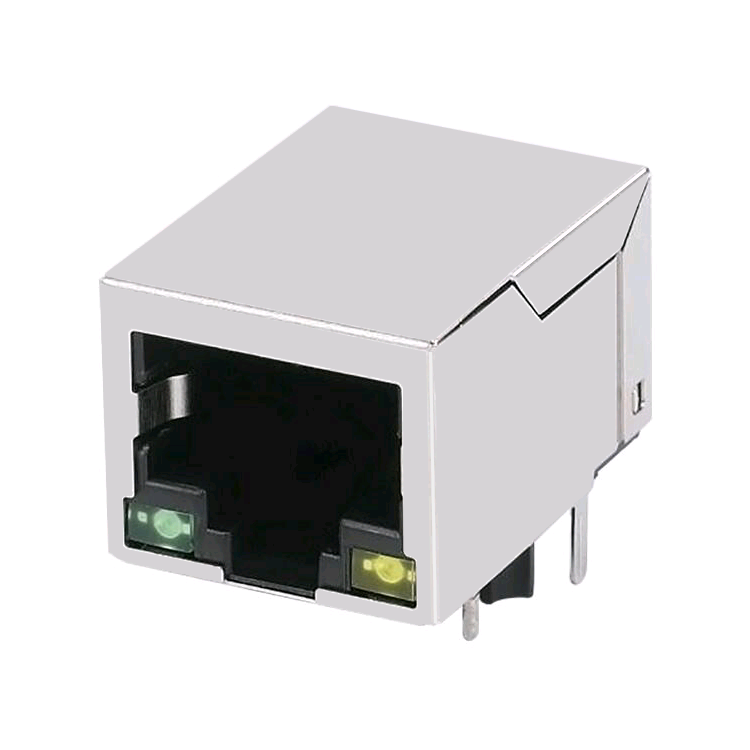

ICM RJ45 1X1100 Base-T ، Tab down مع LEDs PN#J11GH2B13NPD7

SPECIFICATIONS:

1.Material:

• 1.1 Housing: PBT UL94V-0 Black.
• 1.2 Insert core:PBT UL94V-0 Black.
• 1.3 Contact :Phosphor Bronze,Gold plated on contact area 6u”,Tin plated on solder area 80u” min, overall nickel plating 30u” min.
• 1.4 Input Terminal : Brass,Tin plated on solder area 80u” min, Ni underplated overall 30u” min.
• 1.5 Metal shielding:Copper alloy with Nickel plated

2.Environmental requirements:

• 2.1 Lead-free process,compliant RoHS
